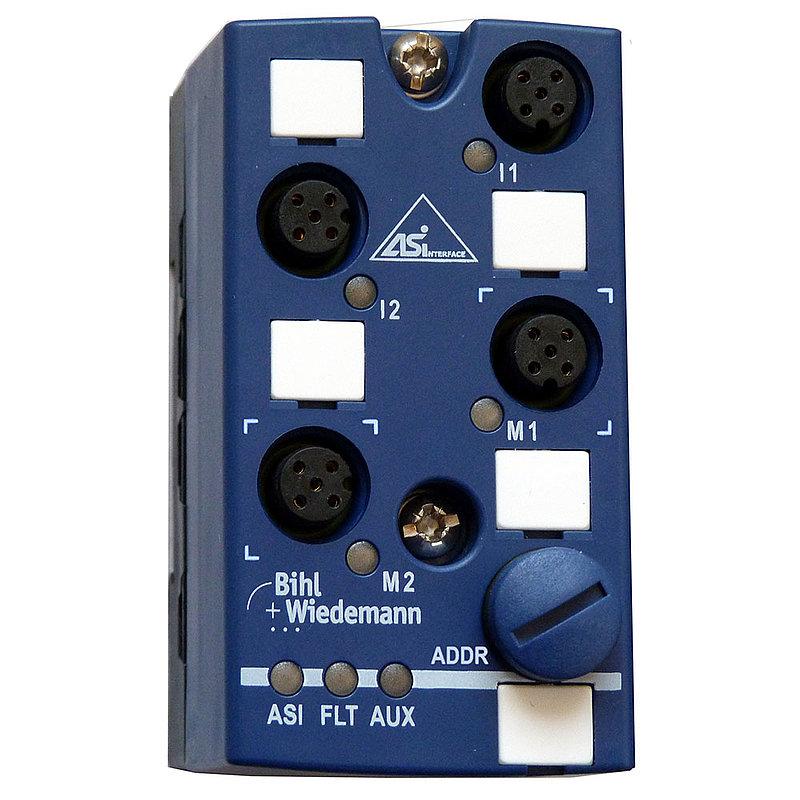

ASi Motor Module, IP67, M12 for 24 V motorized rollers, 2M/2I



ASi Motor Module in IP67, with 4 x M12 sockets for 2 x 24 V motorized rollers Interroll (e.g. Interroll EC5000 AI, 24 V, 20 W/35 W, Itoh Denki PM500XC/XK, PM605XC/XK, Rulmeca RDR BL-3), 4 digital inputs, 2 digital outputs, 2 analog outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, internal line protection, separately for each motor 4,5 A (slow-blow fuse), periphery connection via 4 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 AB address The substructure module is not included in the scope of delivery.

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			IP67, 4 x M12
ASi-5/ASi-3			ASi-3 compatible
Housing			4 x M12
Protection rating			IP67
Drive			Interroll (EC5000 AI, 24 V, 20 W/35 W), Itoh Denki (PM500XK), RULMECA (RDR BL-3)
Number of Drives			2
Line protection fuse			yes, separately for each motor, 4,5 A (slow-blow fuse)
Flat design, installation in cable duct possible			no
Inputs digital			2
Outputs digital			-
Input voltage (sensor supply)			out of ASi
Output voltage (actuator supply)			out of AUX
Connection			4 x M12 sockets, 5 poles
Round cable			no
ASi connection			ASi profile cable
ASi address			1 AB address
