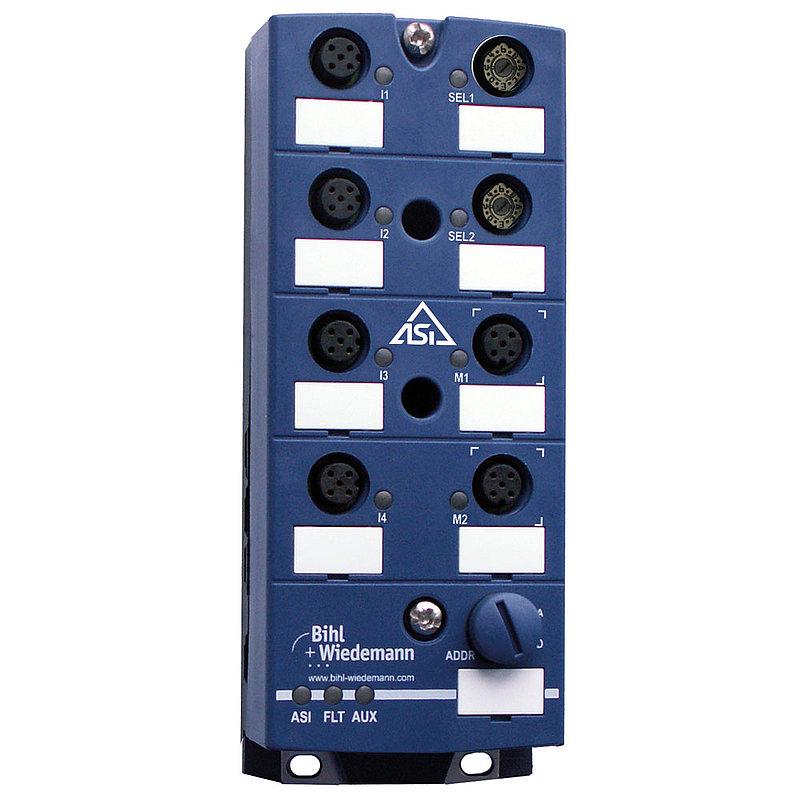

ASi Motor Module, IP67, M12 for 24V motorized rollers, 4I/4O/2AO
Описание
Информация для заказа
ASi Motor Module in IP67, with 6 x M12 sockets for 2 x 24 V motorized rollers Interroll (EC310, EC5000 AI) or RULMECA (RDR BL-2) or Itoh Denki (PM500XC/XK, PM500XE/XP, PM605XC/XK, PM605XE/XP), 4 digital inputs, 4 digital outputs, 2 analog outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, internal line protection, separately for each motor 4,5 A (slow-blow fuse), periphery connection via 6 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 single address + 1 AB address. In the motor module UL approved fuses are placed before each of the motor supply connections. A short circuit in the motor causes this fuse to blow, protecting the connection cable between the module and motor. After blowing the fuse the module is no longer functional and needs to be replaced. The characteristics of the fuse must be checked against the motor data before using the module. The protection circuit in the module allows a very simple protection of the motor cables. The fuse for the cable protection is a slow-blow one; without short circuit the robust behavior of the module remains. The substructure module is not included in the scope of delivery.
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ | |||||||||
Type | IP67, 8 x M12 | ||||||||
ASi-5/ASi-3 | ASi-3 compatible | ||||||||
Housing | 8 x M12 | ||||||||
Protection rating | IP67 | ||||||||
Drive | Interroll (EC310, EC5000 AI, 24 V), RULMECA (RDR BL-2), Itoh Denki (PM500ME/XE/XP, PM605ME/XE/XP) | ||||||||
Number of Drives | 2 | ||||||||
Line protection fuse | yes, separately for each motor, 4,5 A (slow-blow fuse) | ||||||||
Flat design, installation in cable duct possible | no | ||||||||
Inputs digital | 4 | ||||||||
Outputs digital | - | ||||||||
Input voltage (sensor supply) | out of ASi | ||||||||
Output voltage (actuator supply) | out of AUX | ||||||||
Connection | 6 x M12 sockets, 5 poles | ||||||||
Round cable | no | ||||||||
ASi connection | ASi profile cable | ||||||||
ASi address | 1 Single address + 1 AB address |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
