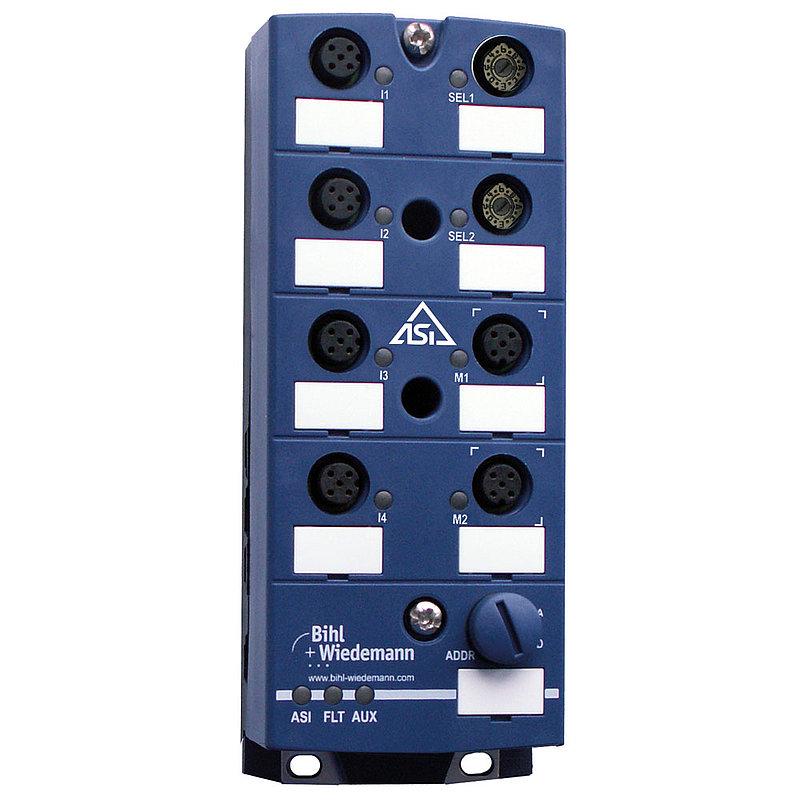

ASi Motor Module, IP67, M12 for 24V motorized rollers, 4I/4O/2AO
Описание
Информация для заказа
ASi Motor Module in IP67, with 6 x M12 sockets for 2 x 24 V motorized rollers Interroll (EC310) or RULMECA (RDR BL-2) or Itoh Denki (PM500XC/XK, PM500XE/XP, PM605XC/XK, PM605XE/XP), 4 digital inputs, 4 digital outputs, 2 analog outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via 6 x M12 sockets, 5 poles, ASi connection via profile cable and piercing technology, 1 single address + 1 AB address The motor module is designed to supply the 24 V directly to the motor. At high currents or surges as they occur for example at braking, the module will not be damaged. The cable protection should be realized outside the motor module with additional measures. The substructure module is not included in the scope of delivery.
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ | |||||||||
Type | IP67, 8 x M12 | ||||||||
ASi-5/ASi-3 | ASi-3 compatible | ||||||||
Housing | 8 x M12 | ||||||||
Protection rating | IP67 | ||||||||
Drive | Interroll (EC310), RULMECA (RDR BL-2), Itoh Denki (PM500ME/XE/XP, PM605ME/XE/XP) | ||||||||
Number of Drives | 2 | ||||||||
Line protection fuse | no | ||||||||
Flat design, installation in cable duct possible | no | ||||||||
Inputs digital | 4 | ||||||||
Outputs digital | - | ||||||||
Input voltage (sensor supply) | out of ASi | ||||||||
Output voltage (actuator supply) | out of AUX | ||||||||
Connection | 6 x M12 sockets, 5 poles | ||||||||
Round cable | no | ||||||||
ASi connection | ASi profile cable | ||||||||
ASi address | 1 Single address + 1 AB address |
