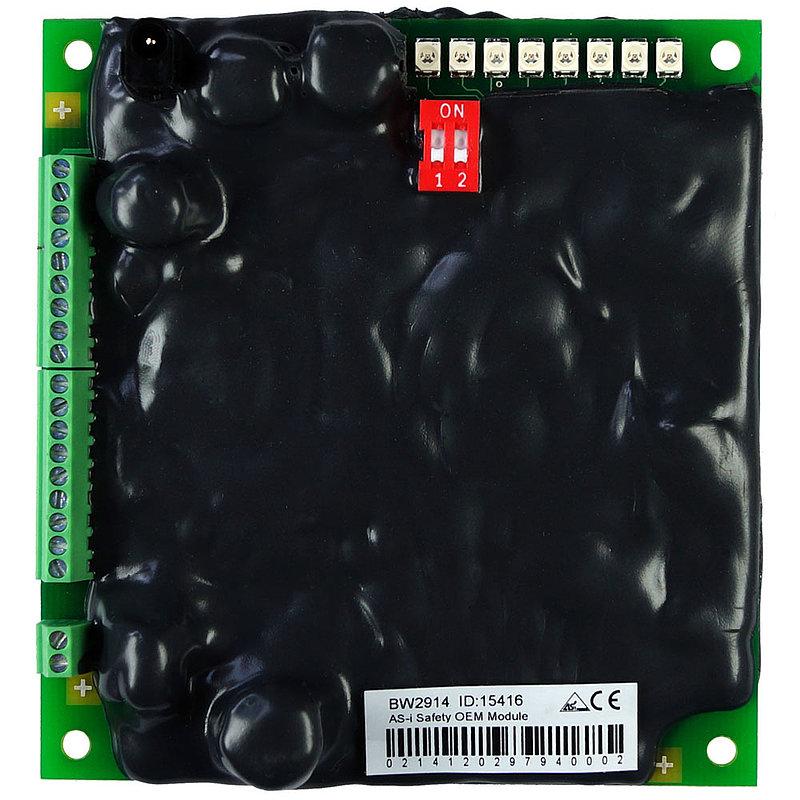

ASi Safety PCB Module, 85 mm x 80 mm



ASi Safety PCB Module, 85 mm x 80 mm, 1 release circuit (1 x electronic safe output), 2 digital inputs, 2 digital outputs, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, max. 100 mA for sensor supply, max. 100 mA per output (standard), periphery connection via screw terminals, thick coated, LED, ASi connection via screw terminals, 1 single slave + 2 AB slaves

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			circuit board 85 mm x 80 mm, Safety
Circuit board dimensions			85 mm x 80 mm
Inputs Safety, SIL 3, Cat. 4			-
Inputs digital			2
Outputs digital			2 x electronic
Outputs Safety, SIL 3, cat. 4			1 release circuit, 1 x electronic safe output
Safety signal inputs			-
Inputs analog			-
PCB connection			screw terminals
Coating			thick coated
LED status display			yes
Input voltage (sensor supply)			out of AUX
Output voltage (actuator supply)			out of AUX
ASi connection			screw terminals
ASi address			1 Single address + 2 AB addresses
