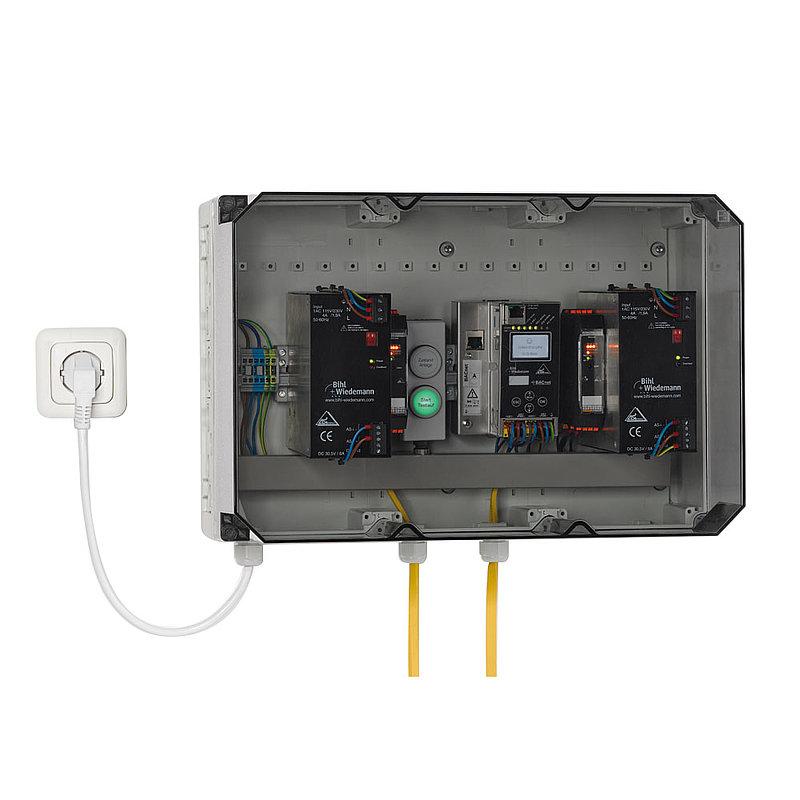

Fire damper „stand alone“ control unit with BACnet interface for 2 ASi network



Fire damper „stand alone“ control unit with BACnet interface for 2 ASi network, for up to 240 fire dampers, provided as a kit in rugged plastic housing, pre-wired for easy and fast installation, ready to connect with contactor plug, pre-installed user software, no further configuration needed, centralized control of damper drives and detection of damper positions, plain text display and spontaneous diagnostics directly via device display and function LEDs, automated testing of damper function via different test modes

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			Fire damper "Stand alone" control unit
Model			BACnet, 2 ASi networks, max. 120 / 240 fire dampers
Housing			polystyrol, 450/300/209
Protection rating			IP65
Inputs digital			-
Outputs digital			-
Inputs analog			-
Outputs analog			-
Input voltage (sensor supply)			out of ASi
Output voltage (actuator supply)			-
ASi address			-
Controlling ventilation, fire, smoke dampers			-
Controlling heating/air conditioning			-
Number of fire dampers			120 / 240
Number of fire damper groups			6
Number of building ventilation system releases			2, extensible
