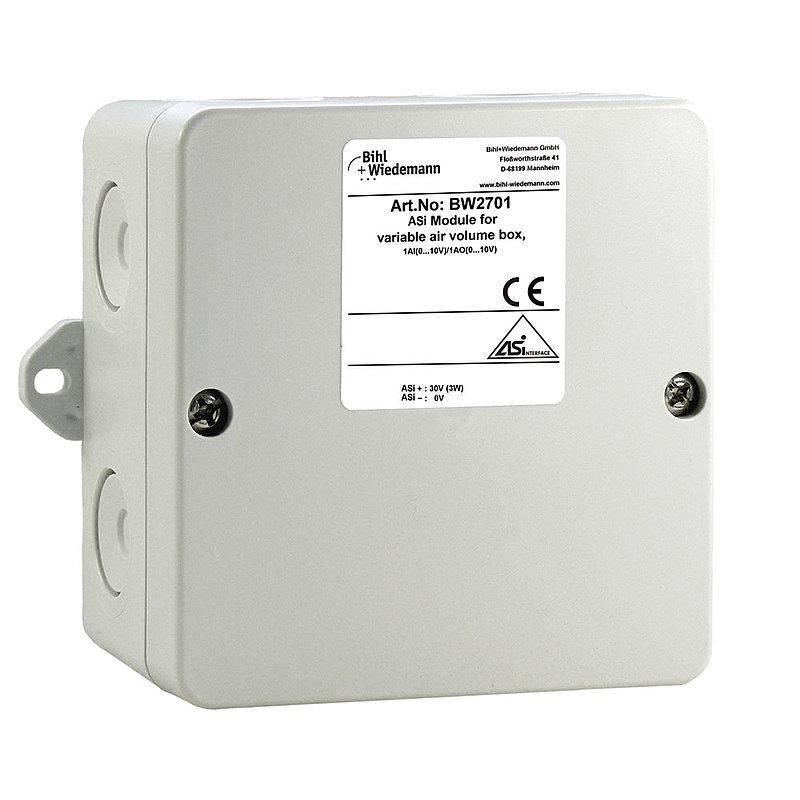

ASi Module to control Variable Air Volume Boxes
Описание
Информация для заказа
The ASi module for controlling volumetric flow controllИли отправьте нам запрос наrmiИли отправьте нам запрос наets the requirement of ASi specification 3.0. It is used to control volumetric flow controllers (0 ... 10 V) using the anaИли отправьте нам запрос наe module also has an analog input (0 ... 10 V), for example to connect sensors for monitoring the air quality or for flap feedback. The terminations are short-circuit and overload protected. An integrated watchdog function turns the output off when there is no communication on the ASi line. The transmission function is permanently monitored in the integrated ASi slave and ASi master. Module connections are in the form of spring clamps.
ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ | |||||||||
Type | I/O for VAV boxes | ||||||||
Model | I/O modules | ||||||||
Housing | surface-mounted box | ||||||||
Protection rating | IP54 | ||||||||
Inputs digital | - | ||||||||
Outputs digital | - | ||||||||
Inputs analog | 1 x 0 ... 10 V | ||||||||
Outputs analog | 1x 0 … 10 V | ||||||||
Input voltage (sensor supply) | selectable, out of ASi or out of AUX, Default out of ASi | ||||||||
Output voltage (actuator supply) | selectable, out of ASi or out of AUX, default out of ASi | ||||||||
ASi address | 1 Single address | ||||||||
Controlling ventilation, fire, smoke dampers | - | ||||||||
Controlling heating/air conditioning | - | ||||||||
Number of fire dampers | - | ||||||||
Number of fire damper groups | - | ||||||||
Number of building ventilation system releases | - |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
