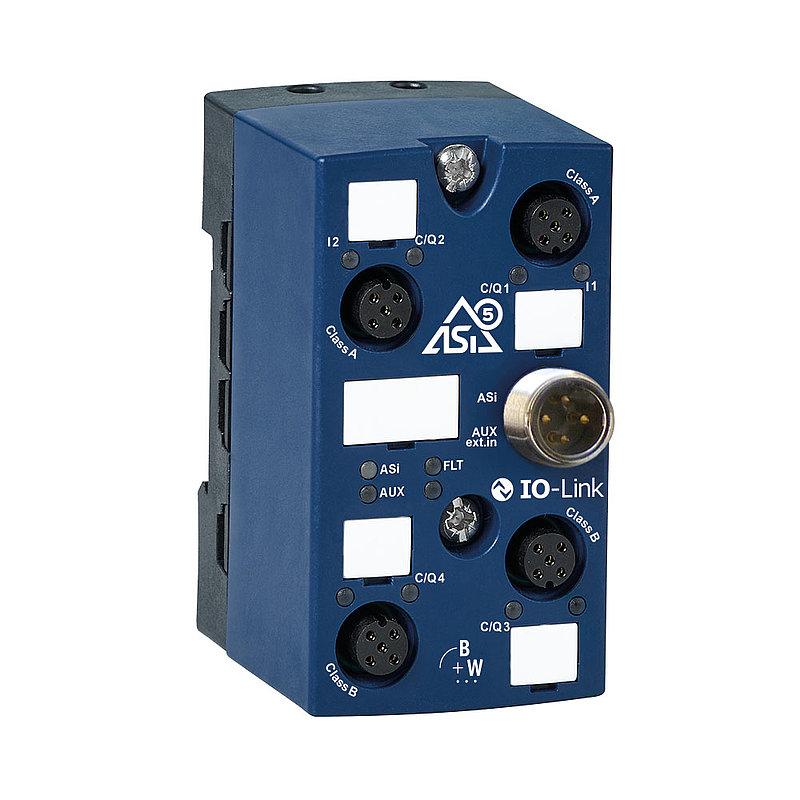

ASi-5 Module with integrated IO-Link Master with 4 Ports, IP67, M12, 2 IO-Link ports class A/2 IO-Link ports



ASi-5 Module with integrated IO-Link Master in IP67, with 4 x M12 sockets, 2 x IO-Link ports class A, 2 x IO-Link ports class B, sensor supply (IO-Link supply and input/output supply) out of AUX, actuator supply (for IO-Link ports class B) out of AUX, periphery connection via 4 x M12 sockets, 5 poles, ASi connection via M12, 1 ASi-5 address

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			IP67, 4 x M12, ASi-5
ASi-5/ASi-3			ASi-5 compatible
Housing			4 x M12
Protection rating			IP67
Number of IO-Link Ports			4
IO-Link Port Class A			2
IO-Link Port Class B			2
Sensor supply (IO-Link supply and input/output supply)			out of AUX
Actuator supply (for IO-Link ports class B)			out of AUX
M8/M12 wiring			IO-Link Port Class A + Class B
IO-Link data rate			COM1 / COM2 / COM3
IO-Link specification			V1.1
Flat design, installation in cable duct possible			no
Connection			4 x M12 sockets, 5 poles
Round cable			-
ASi connection			ASi via M12
ASi address			1 ASi-5 address
