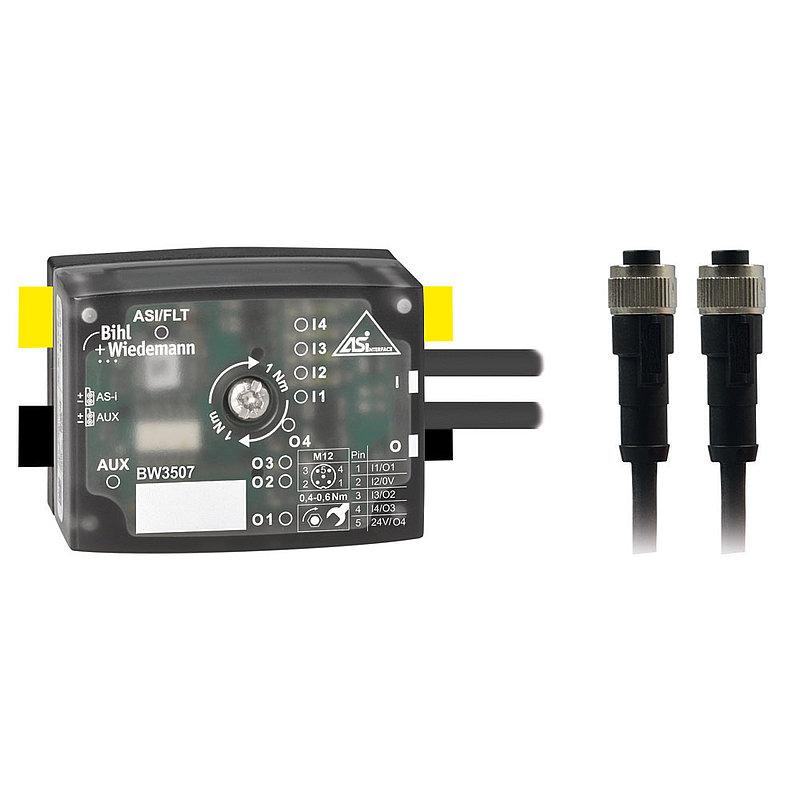

Active Distributor ASi, IP67, 4I/4O



Active Distributor ASi, IP67, housing depth 35 mm, 4 digital inputs, 4 digital outputs, input voltage/sensor supply out of ASi, output voltage/actuator supply out of AUX, periphery connection via 2 x M12 cable sockets, straight, 5 poles, cable length 1 m, flat design, installation in cable duct possible (installation depth ≥ 35 mm), LED, connections for 1 x ASi and 1 x AUX profile cables, ASi connection via profile cable and piercing technology, 1 AB slave

ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Type			Active distributor ASi
ASi-5/ASi-3			ASi-3 compatible
Housing			depth: 35 mm
Protection rating			IP67
Inputs digital			4
Outputs digital			4 x electronic
Input voltage (sensor supply)			out of ASi
Output voltage (actuator supply)			out of AUX
Connection			2 x M12 cable sockets, straight, 5 poles
M8/M12 wiring			-
Round cable			1 m
Flat design, installation in cable duct possible			yes, depth: 35 mm
Profile cable connection			1 x ASi, 1 x AUX
ASi connection			ASi profile cable
ASi address			1 AB address
Special function			-
