LMSLA12

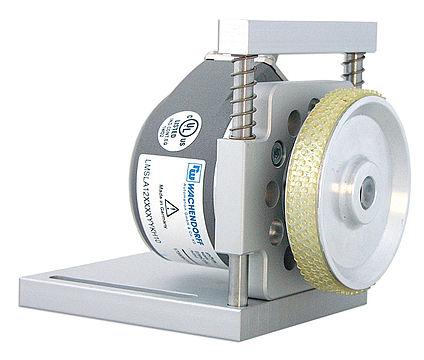

• Complete system, consisting of incremental encoder, linear equalization encoder holder and measuring wheel
• Excellent print layout, thanks to a resolution of 0.008 mm/pulse
• Various measuring wheels for different surfaces available
• High service life, thanks to highest bearing loads and parallel guided free from backlash

Resolution WDGI 58B10 with:
200 PPR: 1 pulse/mm = 1.0 mm/pulse
2000 PPR: 10 pulses/mm = 0.1 mm/pulse
5000 PPR: 25 pulses/mm = 0.04 mm/pulse
25000 PPR: 125 pulses/mm = 0.008 mm/pulse

Power supply/current consumption:
4,75 VDC up to 5,5 VDC: max. 100 mA
10 VDC up to 30 VDC: max. 100 mA

Output circuit:
TTL, HTL

Channels:
ABN + inverted signals

Installation : from below

Adjustable prestressing force: 25 N = 8.5 mm

Measuring wheels Ø = 200 mm

LMSLA12-xxxx-yy-KH with measuring wheel MR200KH:
Surface finish: Synthetic (Hytrel, smooth)
Fields of application: Ungreased metal, steal profiles, painted surfaces, plastics, paper, pasteboard, wood, textiles, leather, wire.

LMSLA12-xxxx-yy-KG with measuring wheel MR200KG:
Surface finish: Synthetic (Hytrel, chequered)
Fields of application: Ungreased metal, painted surfaces, plastics, paper, pasteboard, wood, textiles, glass, flooring.

LMSLA12-xxxx-yy-NG with measuring wheel MR200NG:
Surface finish: Synthetic (pimpled rubber)
Fields of application: plastics, paper, pasteboard, wood, textiles, fleece, carpet, cabel measuring.
