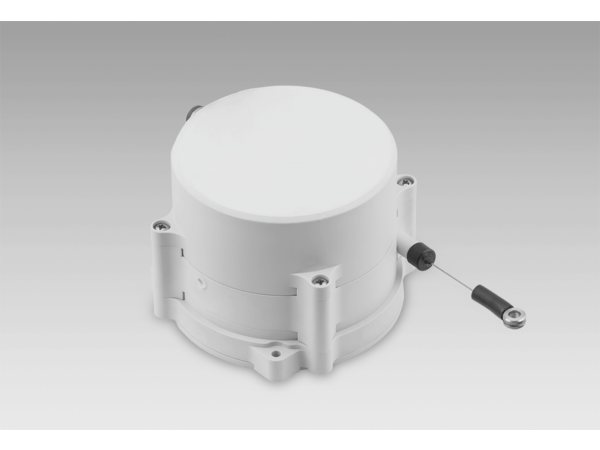

GCA8 - analog
Описание
Информация для заказа
electrical ratings | |
---|---|
Voltage supply | 8...30 VDC 12...30 VDC |
Reverse polarity protection | Yes |
Short-circuit proof | Yes |
Consumption typ. | Yes30 mA (24 VDC, w/o load, current output) 10 mA (24 VDC, w/o load, voltage output) |
Initializing time | ≤100 ms after power on |
Interface | Analog 0...10 Или отправьте нам запрос на |
Load resistor | Analog 0...10 Или отправьте нам запрос наBetween Out/0 V ≥3 kΩ / voltage output 270 Ω at 10 VDC (500 Ω at 15 VDC) / current output |
Function | Linear position feedback |
Resolution | Essentially infinite |
Linearity | ±1.5 % FS |
Absolute accuracy | ±2 % FS |
Sensing method | Potentiometer |
Interference immunity | DIN EN 61000-6-2 |
Emitted interference | DIN EN 61000-6-3 |
mechanical design | |
Protection DIN EN 60529 | DIN EN 61000-6-3IP 65 (housing, drainage holes closed) IP 54 (cable inlet) |
Material | DIN EN 61000-6-3IP 65 (housing, drainage holes closed) IP 54 (cable inlet)Cable: Stainless steel cable AISI 316 coated with nylon PA12 Housing: plastic |
Operating temperature | -40...+85 °C |
Measuring length | 8 m |
Cable diameter | 0,7 mm |
Cable fastening | Eyelet Height: 5 mm Internal diameter: 5 mm Outer diameter: 10 mm |
Pull-in force | >2,5 N |
Pull-out force | ≤8 N |
Relative humidity | 95 % non-condensing |
Resistance | 95 % non-condensingDIN EN 60068-2-6 Vibration 10 g, 10-2000 Hz DIN EN 60068-2-27 Shock 50 g, 11 ms |
Weight approx. | 775 g |
Connection | 775 gCable 2 m, radial Flange connector M12, 5-pin Flange connector M12, 8-pin |
Instruction | Please consider the assembly instructions |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
