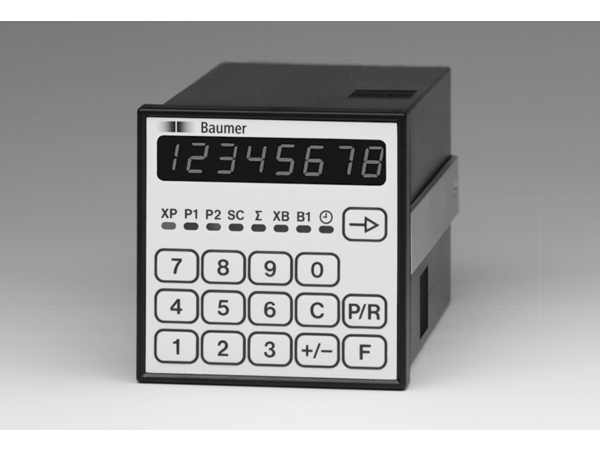

NE212
Описание
Информация для заказа
electrical ratings | |
---|---|
Voltage supply | 85...265 VAC (50/60 Hz) 24 VDC ±10 % |
Power consumption | 85...265 VAC (50/60 Hz) 24 VDC ±10 %15 VA 8 W |
Sensor supply | 85...265 VAC (50/60 Hz) 24 VDC ±10 %15 VA 8 W85...265 VAC: 24 VDC ±20 %/200 mA 24 VDC: 24 VDC ±20 %/200 mA |
Display | LED, 7-segment display |
Number of digits | LED, 7-segment display8-digits - totalizer 6-digits - hour/main/ batch counter, tachometer |
Digit height | 7,6 mm |
Function | 7,6 mmPreset counter Main counter with 2 presets Batch counter with 1 preset Totalizer Hour counter |
Scaling factor | 0.0001...9999.99 |
Multitplier / batch counter | 1...99 |
Count mode | 1...99Adding or subtracting Difference counting A-B Total (parallel) A+B Up/Down A 90° B phase evaluation |
Counting frequency | 15 Hz, 25 Hz, 10 kHz programmable |
Preset | 2 presets |
Operating mode | 2 presetsMain preset Parallel alignment Trailing preset Step preset |
Data memory | >10 years in EEPROM |
Reset | Button, electric or automatic |
Outputs electronic | NPN / PNP transistor switch |
Outputs relay | NPN / PNP transistor switchPotential-free change-over contact for main counter Normally open/closed potential-free for B1 |
Output holding time | 0.01...99.99 s |
Interface | 0.01...99.99 sRS232 RS422 RS485 |
Standard DIN EN 61010‑1 | 0.01...99.99 sRS232 RS422 RS485Protection class II Overvoltage category II Pollution degree 2 |
Emitted interference | DIN EN 61000-6-4 |
Interference immunity | DIN EN 61000-6-2 |
Programmable parameters | DIN EN 61000-6-2Operating modes Sensor logic Scaling factor Count mode Control inputs |
Approval | UL approval / E63076 |
mechanical design | |
Ambient temperature | 0...+50 °C |
Storage temperature | -20...+70 °C |
Relative humidity | 80 % non-condensing |
Connection | Plug-in screw terminal connector |
Core cross-section | 1.5 mm² |
Protection DIN EN 60529 | IP 65 (face with seal) |
Operation / keypad | 10 figure keypad with 5 function keys |
Housing type | Built-in housing |
Dimensions W x H x L | 72 x 72 x 108 mm |
Mounting depth | 108 mm |
Mounting type | Clip frame for built-in housing |
Cutout dimensions | 68 x 68 mm (+0.7) |
Weight approx. | 68 x 68 mm (+0.7)320 g (24 VDC/85-265 VAC) 450 g (24/48 VAC) |
Material | 68 x 68 mm (+0.7)320 g (24 VDC/85-265 VAC) 450 g (24/48 VAC)Housing: Makrolon 6485 (PC) Keypad: Polyester |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
??? ????????? ??? ?????? ?? e-mail: zapros@filfar.by
- Цена: Цену уточняйте
