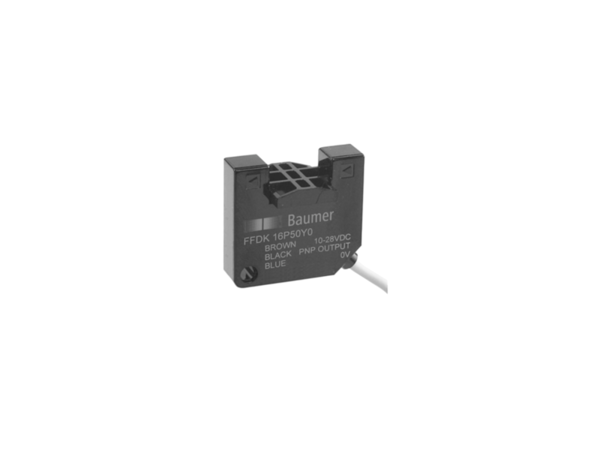

10143978 | FFDK 16P50Y0
Описание
Информация для заказа
general data | |
---|---|
type | liquid level sensor |
light source | pulsed infrared diode |
output indicator | LED red |
sensitivity adjustment | no |
wave length | 950 nm |
max. outer diameter of the pipe / tube | 8 … 13 mm |
max. thickness of the pipe / tube | 1 mm |
electrical data | |
response time / release time | < 2 ms |
voltage supply range +Vs | 9 … 30,8 VDC |
current consumption max. (no load) | 25 mA |
voltage drop Vd | < 1 VDC |
output function | light / dark operate switchable |
output circuit | PNP |
output current | < 100 mA |
short circuit protection | yes |
reverse polarity protection | yes |
mechanical data | |
width / diameter | 16 mm |
height / length | 28 mm |
depth | 26 mm |
type | rectangular |
housing material | PC |
connection types | cable 3 pin, 2 m |
ambient conditions | |
operating temperature | -10 … +55 °C |
protection class | IP 50 |
