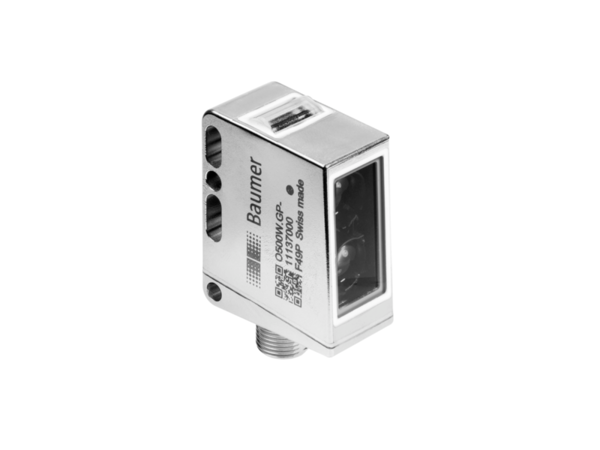

11137000 | O500W.GP-GW1J.PVO/H002
Описание
Информация для заказа
general data | |
---|---|
type | background suppression |
special type | Washdown design |
light source | pulsed PinPoint LED |
sensing distance Tw | 60 … 400 mm |
sensing range Tb | 30 … 400 mm |
power on indication | LED green |
light indicator | LED yellow |
sensing distance adjustment | Teach-in and IO-Link |
wave length | 630 nm |
suppression of reciprocal influence | yes |
alignment optical axis | < 1° |
approvals/certificates | Ecolab |
electrical data | |
response time / release time | < 0,49 ms |
voltage supply range +Vs | 10 … 30 VDC |
current consumption max. (no load) | 40 mA |
current consumption typ. | 30 mA |
voltage drop Vd | < 3 VDC |
output function | light / dark operate |
output circuit | push-pull |
output current | < 100 mA |
short circuit protection | yes |
reverse polarity protection | yes |
mechanical data | |
width / diameter | 20,2 mm |
height / length | 47,9 mm |
depth | 37,7 mm |
type | rectangular |
housing material | stainless steel 1.4404 (V4A) |
front (optics) | PMMA |
connection types | connector M12 4 pin |
ambient conditions | |
operating temperature | -25 … +60 °C |
protection class | IP 68/69K & proTect+ |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
