11157842 | OR18.GR-NW1P.71O
Описание
Информация для заказа
general data | |
---|---|
type | background suppression |
light source | pulsed red LED |
sensing distance Tw | 40 … 120 mm |
sensing range Tb | 5 … 120 mm |
power on indication | LED green |
output indicator | LED yellow |
sensing distance adjustment | mechanical, 4 turn |
wave length | 660 nm |
electrical data | |
response time / release time | < 1 ms |
voltage supply range +Vs | 12 … 30 VDC |
current consumption max. (no load) | 40 mA |
current consumption typ. | 30 mA |
voltage drop Vd | < 2 VDC |
output function | light / dark operate |
output circuit | NPN |
output current | < 100 mA |
short circuit protection | yes |
reverse polarity protection | yes |

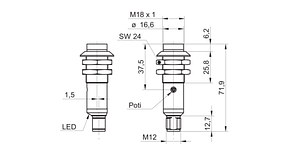

mechanical data | |
width / diameter | 18 mm |
height / length | 71,9 mm |
type | cylindrical threaded |
housing material | plastic (ABS TERLURAN) |
front (optics) | PMMA |
connection types | connector M12 4 pin |
ambient conditions | |
operating temperature | -25 … +55 °C |
protection class | IP 67 |
