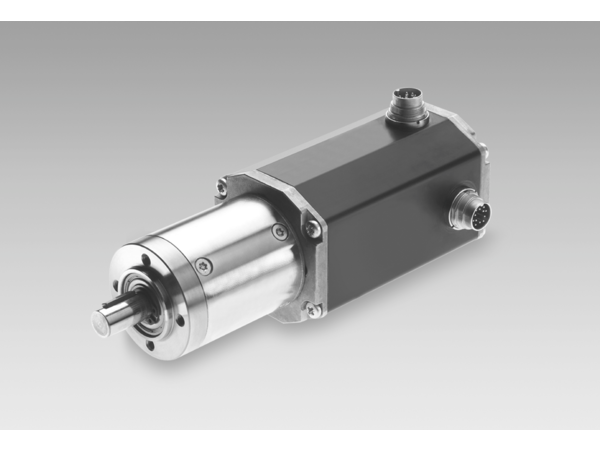

BG650 - planetary gearing
Описание
Информация для заказа
electrical ratings | |
|---|---|
| Voltage supply | 24 (20...30) VDC |
| Residual ripple | <5 % |
| Nominal current | <5 %4 A 5,6 A 7,8 A |
| Nominal rating | <5 %4 A 5,6 A 7,8 A65 W 100 W 140 W |
| Undervoltage shutdown | ≤19 V |
| External backup | 8 AT (required) |
| Overheat protection | 110 °C (final power output circuit) |
| Peak current | ≤27 A |
| Control signals | ≤27 ARotation speed 1 Rotation speed 2 Counterclockwise Clockwise Enable |
| Outputs | Motor malfunction (Error) |
| Inputs | Motor malfunction (Error)Enable Start counterclockwise Start clockwise |
mechanical design | |
| Shaft type | ø12 mm solid shaft |
| Operating temperature | -10...+50 °C |
| Protection DIN EN 60529 | IP 54 |
| Connection | IP 54- Round connector 8-pin, motor supply - Round connector 12-pin, between motor - SPA DIN45326, Binder series 723 |
| Nominal torque | IP 54- Round connector 8-pin, motor supply - Round connector 12-pin, between motor - SPA DIN45326, Binder series 723= 8 Nm (with 65 W) = 12 Nm (with 100 W) = 16 Nm (with 140 W) |
| Starting torque | IP 54- Round connector 8-pin, motor supply - Round connector 12-pin, between motor - SPA DIN45326, Binder series 723= 8 Nm (with 65 W) = 12 Nm (with 100 W) = 16 Nm (with 140 W) ≤40 Nm (with 65 W) ≤60 Nm (with 100 W) ≤130 Nm (with 140 W) |
| Operating speed | IP 54- Round connector 8-pin, motor supply - Round connector 12-pin, between motor - SPA DIN45326, Binder series 723= 8 Nm (with 65 W) = 12 Nm (with 100 W) = 16 Nm (with 140 W) ≤40 Nm (with 65 W) ≤60 Nm (with 100 W) ≤130 Nm (with 140 W)≤72 rpm (highspeed) ≤4 rpm (slowspeed) |
| Scaling ratio | 50:1 |
| Number of stages | 2 |
| Efficiency (factor) | 0,81 |
| Admitted shaft load | 0,81≤500 N axial ≤350 N radial |
| Dimensions | 0,81≤500 N axial ≤350 N radialø52 x 176.5 mm (BG650.25) ø52 x 201.5 mm (BG650.50) ø52 x 226.5 mm (BG650.75) |
| Weight approx. | 0,81≤500 N axial ≤350 N radialø52 x 176.5 mm (BG650.25) ø52 x 201.5 mm (BG650.50) ø52 x 226.5 mm (BG650.75)1670 g (type: BG650.25) 2020 g (type: BG650.50) 2520 g (type: BG650.75) |
| Material | Aluminium profile, anodized in black |
electrical ratings
