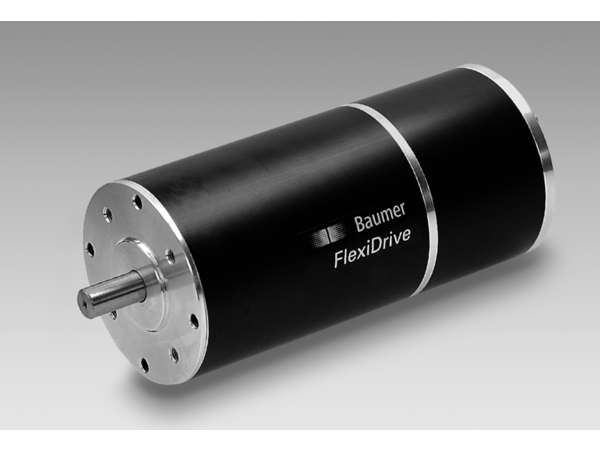

MSIA 68 planetary gear transmission Profibus
Описание
Информация для заказа
electrical ratings | |
|---|---|
| Voltage supply | 24 VDC ±10 % |
| Current consumption | ≤14 A |
| Nominal current | 5,5 A |
| Operating current typ. | ≤100 mA |
| Positioning resolution motor | 0,02 |
| Positioning accuracy motor | ± 1 |
| Repeatability motor | 0,3 ° |
| Number of revolutions | 262144 / 18 bit |
| Commutation | Sine |
| Undervoltage shutdown | ≤11,5 V |
| Terminating resistor | External (see accessories) |
| Controller | Integrated position and speed regulator (4Q) |
| Sensing method | Magnetic |
| Number of pole pairs | 2 = 4 poles |
| Reverse polarity protection | Bus electronics |
| Overheat protection | 112 °C (final power output circuit) |
| Interference immunity | DIN EN 61000-6-2 |
| Emitted interference | DIN EN 61000-6-4 |
communication | |
| Interface | Profibus-DPV0 |
| Output stages | Profibus Insulated RS485 Interface |
| Profile conformity | Profidrive no. 3 Version 2.0 |
| PPO | Type 2 |
| Cyclic data transfer | Communication according to DPV0 |
| Transmission rate | 9,6 … 12000 kbit/s |
| Galvanic isolation bus | Yes |
| Inputs | 4 digitally programmable |
| Switching frequency Inputs | <500 Hz |
| Setting switch | Manual setting of bus address |
| Potential equalization | Separate screw connection |
| Status indicator | DUO-LED integrated in housing |
| Operating mode | DUO-LED integrated in housingPosition-controlled operation Speed-controlled operation Referencing External targets Journey datasets |
| Diagnostic function | DUO-LED integrated in housingPosition-controlled operation Speed-controlled operation Referencing External targets Journey datasetsTemperature control Parameter error Multiturn sensing Self-diagnosis |
| Programming software | Yes |
| Factory setting | Node ID 3 |
mechanical design | |
| Dimensions | ø68 mm |
| Shaft type | ø68 mmø10 mm solid shaft ø14 mm solid shaft |
| Operating speed | ≤4200 rpm |
| Nominal speed | 3900 rpm |
| Nominal power output | 92 W |
| Nominal torque | 0,225 Nm |
| Starting torque | ≤0,68 Nm |
| Service life | 20000 h (without gear) |
| Protection DIN EN 60529 | IP 54 |
| Ambient temperature | -15...+40 °C |
| Isolation class | B (+130 °C, DIN EN 60034-1) |
| Rotor moment of inertia | 588 gcm² |
| Connection | Connector |
| Number of stages | 1 … 3 |
| Resistance | 1 … 3DIN EN 60068-2-6 Vibration DIN EN 60068-2-27 shock |
| Self-locking in de-energized state | <0,02 Nm |
| Shaft surface | Smooth and round (without gear transmission); key (with gear transmission) |
| Material | Housing: steel and aluminium |
| S1 continuous operation | DIN EN 60034-1 |
| S3 intermittent operation | Power-on time 25 %, run time 1 min |
| Instruction | Nominal data at +40 °C ambient temperature for g |
