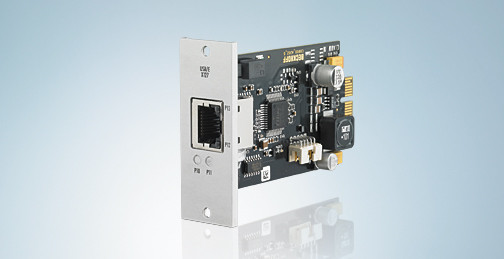

C9900-E270 | USB Extender Tx module
Larger distances than the USB specification of 5 m have to be bridged in machine construction and plant engineering. The C9900-E270 USB extender sends the USB 1.1 signal via a CAT5 cable up to 50 m to the CP69xx or CP79xx Control Panel or to the CU8850 USB Extended receiver, which converts the signal back to USB. Data rates of up to 12 Mbit/s can be transmitted. The C9900-E270 PCIe module is suitable for installation ex works into the Beckhoff CP62xx, C5210, C65xx and C6930 Industrial PCs.
C9900-E270 | USB Extender Tx module |
---|---|
USB Extended transmitter module | |
1 USB Extended output with RJ45 socket for up to 50 m CAT 5 cable for connecting a Control Panel with DVI/USB Extended interface CP69xx or CP79xx | |
for ex factory mounting in PCs with Beckhoff PCIe module slot | |
USB transfer rate up to 12 Mbit/s according to USB 1.1 |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
