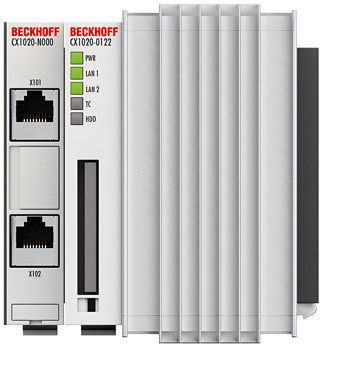

CX1020 | Basic CPU module
Описание
Информация для заказа
The basic CX1020 CPU module has a 1 GHz Intel® CPU. The controller does not require a fan or other rotating components. In addition to the CPU and the chipset, the CX1020 module also contains the main memory, which is available in different sizes. The controller boots from the Compact Flash.
| Technical data | CX1020 |
|---|---|
| Processor | Intel® Celeron® M ULV, 1 GHz clock frequency |
| Number of cores | 1 |
| Flash memory | 128 MB Compact Flash card (optionally expandable) |
| Internal main memory | 256 MB DDR RAM (expandable to 512 MB, 1 GB) |
| Interfaces | 2 x RJ45 (Ethernet, internal switch), 10/100 Mbit/s |
| Diagnostics LED | 1 x power, 2 x LAN link/activity, TC status, 1 x flash access |
| Expansion slot | 1 x Compact Flash type I+II insert with eject mechanism |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows Embedded CE 6 or Microsoft Windows Embedded Standard 2009 |
| Control software | TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime |
| System bus | 16 bit ISA (PC/104) |
| I/O connection | via power supply module (E-bus, K-bus, K-bus/IP-Link) |
| Power supply | via system bus (through CX1100-xxxx power supply modules) |
| Max. power loss | 11 W (including CX1020-N0xx system interfaces) |
| Dimensions (W x H x D) | 96 mm x 112 mm x 99 mm |
| Weight | approx. 550 g |
| Operating/storage temperature | 0…+50 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals | CE, UL |
| Ordering information | DVI/USB | no operating system | Windows Embedded CE 6 | Windows Embedded Standard 2009 | no TwinCAT | TwinCAT 2 PLC runtime | TwinCAT 2 NC PTP runtime | TwinCAT 2 NC I runtime |
|---|---|---|---|---|---|---|---|---|
| CX1020-0000 | – | x | – | – | x | – | – | – |
| CX1020-0010 | – | – | x | – | x | – | – | – |
| CX1020-0011 | – | – | x | – | – | x | – | – |
| CX1020-0012 | – | – | x | – | – | x | x | – |
| CX1020-0013 | – | – | x | – | – | x | x | x |
| CX1020-0100 | x | x | – | – | x | – | – | – |
| CX1020-0110 | x | – | x | – | x | – | – | – |
| CX1020-0111 | x | – |
- Цена: Цену уточняйте
