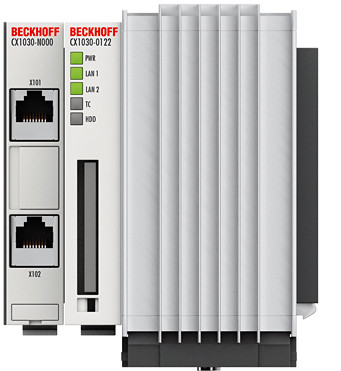

CX1030 | Basic CPU module
Описание
Информация для заказа
The CX1030 basic CPU module offers Pentium® M power on Или отправьте нам запрос наs a 1.8 GHz Intel® Pentium® M CPU. The CPU is cooled via the cooling module and an easily exchangeable fan cartridge located on the underside of the housing. The fan speed can be read via software and can therefore be monitored.
| Technical data | CX1030 |
|---|---|
| Processor | Intel® Pentium® M, 1.8 GHz clock frequency |
| Flash memory | 128 MB Compact Flash card (optionally expandable) |
| Internal main memory | 256 MB DDR RAM (expandable to 512 MB, 1 GB) |
| Interfaces | 2 x RJ45 (Ethernet, internal switch), 10/100 Mbit/s |
| Cooling | cooling module + fan cartridge featuring speed control with double ball bearing fans, easily replaceable |
| Diagnostics LED | 1 x power, 2 x LAN link/activity, TC status, 1 x flash access |
| Expansion slot | 1 x Compact Flash type I+II insert with eject mechanism |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows Embedded CE 6 or Microsoft Windows Embedded Standard 2009 |
| Control software | TwinCAT 2 PLC runtime, NC PTP runtime, NC I runtime |
| System bus | 16 bit ISA (PC/104) |
| I/O connection | via power supply module (E-bus, K-bus, K-bus/IP-Link) |
| Power supply | via system bus (through CX1100-0012 [K-bus], CX1100-0013 [K-bus, IP-Link], CX1100-014 [E-bus] power supply module) |
| Max. power loss | 32 W (including CX1030-N0xx system interfaces) |
| Dimensions (W x H x D) | 96 mm x 112 mm x 99 mm |
| Weight | approx. 580 g |
| Operating/storage temperature | 0…+50 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals | CE, UL |
| Ordering information | DVI/USB | no operating system | Windows Embedded CE 6 | Windows Embedded Standard 2009 | no TwinCAT | TwinCAT 2 PLC runtime | TwinCAT 2 NC PTP runtime | TwinCAT 2 NC I runtime |
|---|---|---|---|---|---|---|---|---|
| CX1030-0000 | – | x | – | – | x | – | – | – |
| CX1030-0010 | – | – | x | – | x | – | – | – |
| CX1030-0011 | – | – | x | – | – | x | – | – |
| CX1030-0012 | – | – | x | – | – | x | x | – |
| CX1030-0013 | – | – | x | – | – | x | x | x |
| CX1030-0100 | x | x | – | – | x | – | – | – |
| CX1030-0110 | x | – | x | – | x | – | – | – |
- Цена: Цену уточняйте
