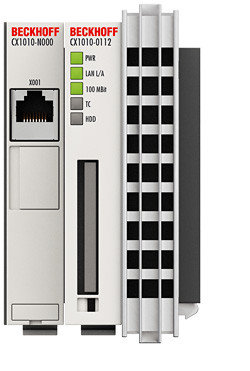

CX1010 | Basic CPU module
The CX1010 CPU module is the basic module of the CX system. It comprises the CPU and the internal flash memory in two implementation levels and offers the option to operate an additional memory medium in Compact Flash format II. An Ethernet interface is part of the basic configuration. All other CX family components can be connected via the PC/104 interface that is available on both sides. The CPU module can be equipped with different hardware and software options: the operating system can be Windows Embedded CE 6 or Windows Embedded Standard 2009.
| Technical data | CX1010 |
|---|---|
| Processor | compatible with Pentium® MMX, clock frequency 500 MHz |
| Flash memory | 128 MB Compact Flash card (optionally expandable) |
| Internal main memory | 256 MB DDR RAM (not expandable) |
| Interfaces | 1 x RJ45 (Ethernet), 10/100 Mbit/s |
| Diagnostics LED | 1 x power, 1 x LAN speed, 1 x LAN activity, TC status, 1 x flash access |
| Expansion slot | 1 x Compact Flash type II insert with ejector |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows Embedded CE 6 or Microsoft Windows Embedded Standard 2009 |
| Control software | TwinCAT 2 PLC runtime or TwinCAT 2 NC PTP runtime |
| System bus | 16 bit ISA (PC/104) |
| I/O connection | via power supply module (E-bus, K-bus, K-bus/IP-Link) |
| Power supply | via system bus (through CX1100-xxxx power supply modules) |
| Max. power loss | 8 W (including the system interfaces CX1010-N0xx) |
| Dimensions (W x H x D) | 58 mm x 120 mm x 91 mm |
| Weight | approx. 355 g |
| Operating/storage temperature | 0…+50 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals | CE, UL |
| Ordering information | DVI/USB | no operating system | Windows Embedded CE 6 | Windows Embedded Standard 2009 | no TwinCAT | TwinCAT 2 PLC runtime | TwinCAT 2 NC PTP runtime |
|---|---|---|---|---|---|---|---|
| CX1010-0000 | – | x | – | – | x | – | – |
| CX1010-0010 | – | – | x | – | x | – | – |
| CX1010-0011 | – | – | x | – | – | x | – |
| CX1010-0012 | – | – | x | – | – | x | x |
| CX1010-0020 | – | – | – | x* | x | – | – |
| CX1010-0021 | – | – | – | x* | – | x | – |
| CX1010-0022 | – | – | – | x* | – | x | x |
| CX1010-0100 | x | x | – | – | x | – | – |
- Цена: Цену уточняйте
