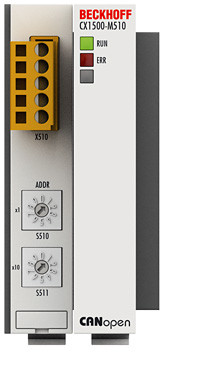

CX1500-M510 | CANopen master fieldbus connection
Описание
Информация для заказа
Technical data | CX1500-M510 |
---|---|
Fieldbus | CANopen |
Data transfer rates | 10, 20, 50, 100, 125, 250, 500, 800, 1,000 kbaud |
Bus interface | open style connector, 5-pin |
Bus device | max. 127 slaves |
Interface to the CPU | ISA plug and play, 2 kbyte DPRAM |
Max. power loss | 1.8 W |
Properties | CANopen – supported PD communication types: event driven, time-controlled, synchronous, polling; emergency message handling, guarding and heartbeat, boot-up according to DS302, Online Bus Load Monitor and Bus Trace, the error management for each user is freely configurable. |
Dimensions (W x H x D) | 38 mm x 100 mm x 91 mm |
Weight | approx. 190 g |
Operating/storage temperature | 0…+55 °C/-25…+85 °C |
Relative humidity | 95 %, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protection class | IP 20 |
System | |
---|---|
CANopen | For further CANopen products please see the system overview. |
