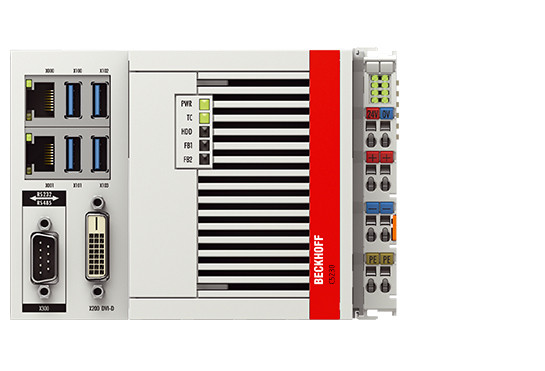

CX5230 | Embedded PC with Intel Atom processor
The CX5230 has an Intel® Atom™ multi-core processor with a clock rate of 1.3 GHz. This makes genuine multi-core technology possible in the Embedded PC segment. The hardware interfaces in this new series are oriented and implemented identically to those of the existing CX5000 series. Two independent, Gigabit-capable Ethernet interfaces as well as four USB 3.0 and a DVI-D interface are available. A multitude of further connection options and gateway functions is created by an option interface, which can be pre-equipped ex factory, as well as the I/O level, which can optionally consist of either E-bus or K-bus terminals.
| Technical data | CX5230 |
|---|---|
| Processor | Intel® Atom™ E3930, 1.3 GHz, 2 cores (TC3: 40) |
| Number of cores | 2 |
| Flash memory | slot for CFast card and microSD card, cards not included |
| Main memory | 4 GB DDR4 RAM (internal, not expandable) |
| Persistent memory | integrated 1-second UPS (1 MB on CFast card) |
| Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 3.0, 1 x optional interface |
| Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
| Clock | internal battery-backed clock for time and date (battery exchangeable) |
| Operating system | Microsoft Windows 10 IoT Enterprise, Long Term Servicing Branch (LTSB), 64 bit |
| Control software | TwinCAT 3 runtime (XAR) |
| I/O connection | E-bus or K-bus, automatic recognition |
| Power supply | 24 V DC (-15 %/+20 %), electrically isolated and UPS OCT-capable |
| Max. power loss | typ. 16 W, max. 44 W |
| Dimensions (W x H x D) | 142 mm x 100 mm x 92 mm |
| Weight | approx. 1195 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals/markings | CE, UL |
| TC3 performance class | Performance (40); please see here for an overview of all the TwinCAT 3 performance classes |
| Ordering information | no operating system | Windows 10 IoT Enterprise LTSB 64 bit | no TwinCAT | TwinCAT 3 runtime (XAR) |
|---|---|---|---|---|
| CX5230-0100 | x | – | x | – |
| CX5230-0150 | – | x | x | – |
| CX5230-0155 | – | x | – | x |
| Accessories | |
|---|---|
| CX2900-0108 | logo strips for CX51x0 and CX52x0, transparent for individual labelling, package contents 20 units |
| CX1900-0102 | spare battery suitable for CX10x0, CX50x0, CX51x0, CX90x0, CX20xx– lithium button cell type CR2032, 3V/225 mAh– follow polarity when installing |
| Optional interfaces | |
|---|---|
| CX5230-B110 | EtherCAT slave interface, EtherCAT IN and OUT (2 x RJ45) |
| CX5230-B310 | PROFIBUS slave interface, D-sub socket, 9-pin |
| CX5230-B510 | CANopen slave interface, D-sub plug, 9-pin |
| CX5230-B930 | PROFINET RT, device interface, Ethernet (2 x RJ45 switched) |
| CX5230-B931 | PROFINET IRT, device interface, Ethernet (2 x RJ45 switched), in combination with TwinCAT 3 only |
