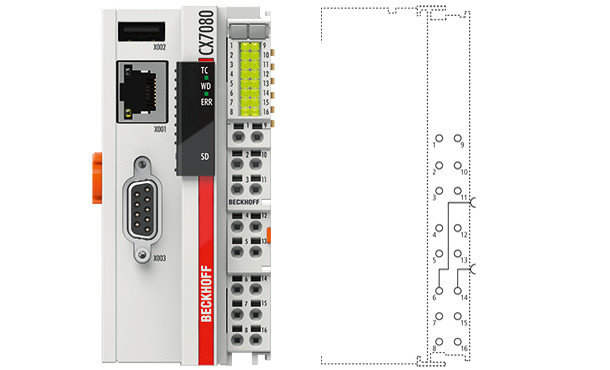

CX7080 | Embedded PC for RS232/RS485
The CX7080 Embedded PC has an ARM Cortex™ M7 single-core processor with 400 MHz. In the basic configuration, the CX7080 has a slot for a microSD card and an Ethernet interface. As a special feature, the CX7000 series has eight integrated multi-functional inputs as well as four integrated multi-functional outputs.Или отправьте нам запрос наfers two serial interfaces, one with RS232 and one with RS485 physics. Both serial interfaces are on the D-sub socket.
| Technical data | CX7080 |
|---|---|
| Processor | ARM Cortex™-M7, 400 MHz |
| Flash memory | 512 MB microSD (optionally 1 GB, 2 GB, 4 GB or 8 GB) |
| Main memory | 32 MB SDR (internal, not expandable) |
| Number of inputs | 8 multi-functional inputs (24 V DC) |
| Number of outputs | 4 multi-functional outputs (24 V DC, 0.5 A, 1-wire technique) |
| Protocol | serial communication RS232/RS485 |
| Programming | TwinCAT 3 PLC |
| NOVRAM | 2 kB |
| Interfaces | programming interface: 1 x Ethernet 10/100 Mbit/s (RJ45) |
| Bus interface | D-sub 9-pin, RS232/RS485 |
| I/O connection | E-bus or K-bus, automatic recognition |
| Clock | internal, capacitor-buffered real-time clock for time and date (storage capacity > 21 days) |
| Dimensions (W x H x D) | 49 mm x 100 mm x 72 mm |
| Weight | 130 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals/markings | CE |
| TC3 performance class | Basic (10), not yet available; please see here for an overview of all the TwinCAT 3 performance classes |
| Accessories | |
|---|---|
| CX1900-01xx | Optionally expandable memory ex factory. Instead of 512 MB microSD card: 1, 2, 4 and 8 GB microSD card |
| System | |
|---|---|
| RS232 | For further RS232 products please see the system overview. |
| Product announcement | estimated market release 3rd quarter 2019 |
