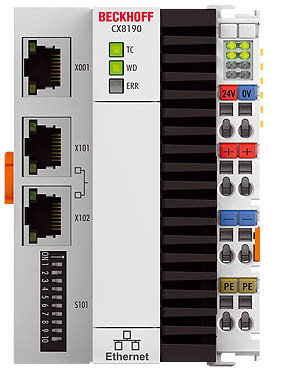

CX8190 | Embedded PC for different Ethernet protocols

  CX8190 | Embedded PC for different Ethernet protocols
Под заказТолько оптом

Цену уточняйте

  • +375 показать номер +375(44)765-55-50
  • +375(29)690-11-55

Заказ только по телефону

  • Контакты
    • Телефон:
      +375(44)765-55-50
      +375(29)690-11-55
    • Контактное лицо:
      Сергей, Владимир
    • Адрес:
      ул. Западная, д.13, каб.519, Минск, Беларусь
    • Email:
      zapros@filfar.by

The CX8190 is a controller with two Ethernet ports, one of which is switched to two RJ45 sockets. It supports protocols such as real-time Ethernet, ADS UDP/TCP or EAP (EtherCAT Automation Protocol). K-bus or E-bus terminals can be attached as required; the CX8190 automatically recognises the type of I/O system connected during the start-up phase. The control system is programmed with TwinCAT 3 via the fieldbus interface or the additional Ethernet interface. TwinCAT 3 licenses must be ordered via the TwinCAT 3 price list.



Техническая спецификация в PDF

Technical dataCX8190
ProcessorARM Cortex™-A9, 800 MHz (TC3: 20)
Flash memoryslot for microSD card, 512 MB included (expandable)
Main memory512 MB DDR3 RAM (not expandable)
Protocolreal-time Ethernet, ADS UDP, ADS TCP, EAP (EtherCAT Automation Protocol)
ProgrammingTwinCAT 3
Interfaces1 x RJ45 10/100 Mbit/s, 2 x RJ45 100 Mbit/s (RT Ethernet, internal switch)
Bus interface2 x RJ45 (switched)
Data transfer rates100 Mbit/s
I/O connectionE-bus or K-bus, automatic recognition
Power supply24 V DC (-15 %/+20 %)
Clockinternal battery-backed clock for time and date (battery behind the front flap, exchangeable)
UPS1-second UPS
Operating systemMicrosoft Windows Embedded Compact 7
Current supply E-bus/K-bus2 A
Max. power loss4 W (including the system interfaces)
Dimensions (W x H x D)71 mm x 100 mm x 73 mm
Weightapprox. 230 g
Operating/storage temperature-25…+60 °C/-40…+85 °C
Relative humidity95 %, no condensation
Vibration/shock resistanceconforms to EN 60068-2-6/EN 60068-2-27
EMC immunity/emissionconforms to EN 61000-6-2/EN 61000-6-4
Protection classIP 20
Approvals/markingsCE, UL
TC3 performance classEconomy (20); please see here for an overview of all the TwinCAT 3 performance classes

System
Ethernet TCP/IPFor further Ethernet TCP/IP products please see the system overview.
