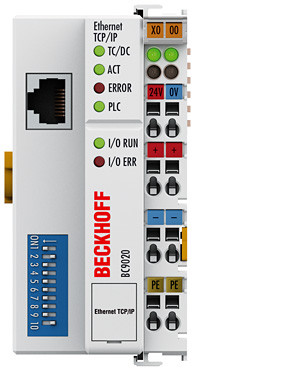

BC9020 | Ethernet TCP/IP “Economy plus” Bus Terminal Controller
Описание
Информация для заказа
| PLC data | Ethernet TCP/IP | BC9020 |
|---|---|
| Programming | via TwinCAT and programming interface or Ethernet |
| Program memory | 128 kbytes |
| Data memory | 128 kbytes |
| Remanent data | 2 kbytes |
| Persistent data | 1 kbyte |
| Runtime system | 1 PLC task |
| PLC cycle time | approx. 1 ms for 1,000 instructions (without I/O cycle, K-bus) |
| Programming languages | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
| Online change | yes |
| Up/down load code | yes/yes |
| Technical data | BC9020 |
|---|---|
| Number of Bus Terminals | 64 (255 with K-bus extension) |
| Max. number of bytes fieldbus | 512 byte input and 512 byte output |
| Digital peripheral signals | 2,040 inputs/outputs |
| Analog peripheral signals | 512 inputs/outputs |
| Protocol | TwinCAT ADS, Modbus TCP |
| Configuration possibility | via KS2000 or Ethernet |
| Data transfer rates | 10/100 Mbaud, automatic recognition of the transmission rate |
| Bus interface | 1 x RJ45 |
| Power supply | 24 V DC (-15 %/+20 %) |
| Input current | 85 mA + (total K-bus current)/4 |
| Starting current | approx. 2.5 x continuous current |
| Recommended fuse | ≤ 10 A |
| Current supply K-bus | 1750 mA |
| Power contacts | 24 V DC max./10 A max. |
| Electrical isolation | 500 V (power contact/supply voltage/fieldbus) |
| Weight | approx. 170 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Protect. class/installation pos. | IP 20/variable |
| Approvals | CE, UL, Ex, GL |
| Accessories | |
|---|---|
| KS2000 | configuration software for extended parameterisation |
| TwinCAT PLC | programming system conforms to IEC 61131-3 |
| Cordsets | cordsets and connectors |
| FC9001-0010 | FC9011 | Ethernet PCI fieldbus cards |
| Related products | |
|---|---|
| BC9120 | Ethernet TCP/IP “Economy plus” Bus Terminal Controller for up to 64 Bus Terminals (255 with K-bus extension, with integrated 2-channel switch) |
| BC9000 | Ethernet Bus Terminal Controller for up to 64 Bus Terminals |
| BC9050 | Ethernet “Compact“ Bus Terminal Controller for up to 64 Bus Terminals (255 with K-bus extension) |
| BC9100 | Ethernet TCP/IP Bus Terminal Controller for up to 64 Bus Terminals (with integrated 2-channel switch) |
| BK9000 | Ethernet TCP/IP Bus Coupler for up to 64 Bus Terminals |
| BK9050 | Ethernet TCP/IP “Compact” Bus Coupler for up to 64 Bus Terminals (255 with K-bus extension) |
| CX8090 | Ethernet Embedded PC |
