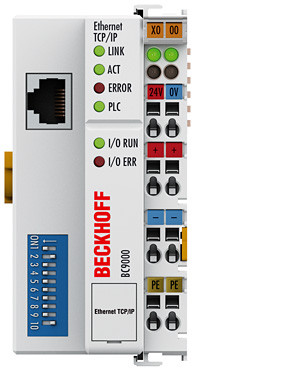

BC9000 | Ethernet TCP/IP Bus Terminal Controller
Описание
Информация для заказа
PLC data | Ethernet TCP/IP | BC9000 |
---|---|
Programming | via TwinCAT and programming interface or Ethernet |
Program memory | 64/96 kbytes |
Data memory | 64/128 kbytes |
Remanent data | 4080 bytes |
Runtime system | 1 PLC task |
PLC cycle time | approx. 1.5 ms for 1,000 instructions (without I/O cycle, K-bus) |
Programming languages | IEC 61131-3 (IL, LD, FBD, SFC, ST) |
Online change | – |
Technical data | BC9000 |
---|---|
Number of Bus Terminals | 64 |
Max. number of bytes fieldbus | 512 byte input and 512 byte output |
Max. number of bytes process image | 512 byte input and 512 byte output |
Digital peripheral signals | 512 inputs/outputs |
Analog peripheral signals | 128 inputs/outputs |
Protocol | TwinCAT ADS, Modbus TCP |
Configuration possibility | via KS2000 or Ethernet |
Data transfer rates | 10/100 Mbaud, automatic recognition of the transmission rate |
Bus interface | 1 x RJ45 |
Power supply | 24 V DC (-15 %/+20 %) |
Input current | 70 mA + (total K-bus current)/4, 500 mA max. |
Starting current | 2.5 x continuous current |
Recommended fuse | ≤ 10 A |
Current supply K-bus | 1750 mA |
Power contacts | 24 V DC max./10 A max. |
Electrical isolation | 500 V (power contact/supply voltage/fieldbus) |
Weight | approx. 170 g |
Operating/storage temperature | -25…+60 °C/-40…+85 °C |
Protect. class/installation pos. | IP 20/variable |
Approvals | CE, UL, Ex, GL |
Accessories | |
---|---|
KS2000 | configuration software for extended parameterisation |
TwinCAT PLC | programming system conforms to IEC 61131-3 |
Cordsets | cordsets and connectors |
FC9001-0010 | FC9011 | Ethernet PCI fieldbus cards |
Related products | |
---|---|
BC9050 | Ethernet “Compact“ Bus Terminal Controller for up to 64 Bus Terminals (255 with K-bus extension) |
BC9020 | Ethernet TCP/IP “Economy plus” Bus Terminal Controller for up to 64 Bus Terminals (255 with K-bus extension) |
BC9100 | Ethernet TCP/IP Bus Terminal Controller for up to 64 Bus Terminals (with integrated 2-channel switch) |
BC9120 | Ethernet TCP/IP “Economy plus” Bus Terminal Controller for up to 64 Bus Terminals (255 with K-bus extension, with integrated 2-channel switch) |
BX9000 | Ethernet Bus Terminal Controller for up to 64 Bus Terminals (255 with K-bus extension) |
BK9000 | Ethernet TCP/IP Bus Coupler for up to 64 Bus Terminals |
BK9050 | Ethernet TCP/IP “Compact” Bus Coupler for up to 64 Bus Terminals (255 with K-bus extension) |
- Цена: Цену уточняйте
