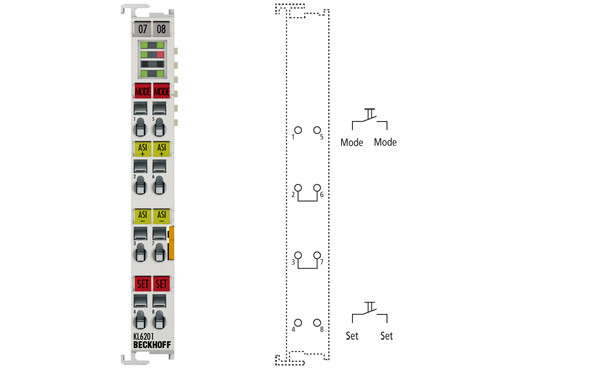

KL6201 | AS-Interface master terminal
Описание
Информация для заказа
Technical data | KL6201 | KS6201 |
---|---|
Technology | AS-Interface |
Number of channels | 1 |
AS-Interface channels | 1 |
Number of slaves | 31 for V 2.0, 62 for V 2.1 |
Specification version | AS-Interface V 2.0, V 2.1 |
Slave types | digital and analog |
Diagnostics | power failure, slave failure, parameterisation fault |
AS-Interface address assignment | via configuration or automatic |
Cycle time | max. 5 ms (31 devices) |
Connection | 2 lines via spring force technology |
Current consumption K-bus | typ. 55 mA (K-bus), approx. 60 mA (AS-Interface) |
Current consumption power contacts | – (no power contacts) |
Electrical isolation | 500 V (AS-Interface/K-bus) |
Power contacts | no |
Bit width in the process image | selectable: 12 bytes, 22 bytes or 38 bytes, of which 6 bytes parameter interface |
Configuration | via fieldbus parameter interface, DP-V1 or Bus Coupler through KS2000 |
Weight | approx. 55 g |
Operating/storage temperature | 0…+55 °C/-25…+85 °C |
Relative humidity | 95 %, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos. | IP 20/variable |
Pluggable wiring | for all KSxxxx Bus Terminals |
Approvals | CE, UL, Ex |
AS-Interface certificate | yes, ZU-No. 125801 |
Special terminals | |
---|---|
KL6201-0010 | preset to 22 bytes K-bus interface, supports up to 31 AS-Interface slaves (2 K-bus cycles) |
KL6201-0011 | preset to 38 bytes K-bus interface, supports up to 62 AS-Interface slaves (4 K-bus cycles) |
Related products | |
---|---|
KL6211 | Bus Terminal, AS-Interface master terminal with power contacts |
System | |
---|---|
subsystem | For further subsystem products please see the system overview. |
Product announcement | KL6201: availableKS6201: estimated market release on request |
