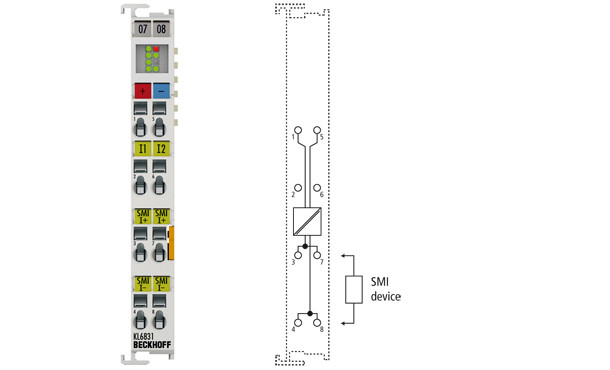

KL6831 | SMI master terminal, LoVo
Описание
Информация для заказа
Technical data | KL6831 |
---|---|
Technology | SMI |
Number of channels | 1 |
Number of slaves | 16 |
Data transfer standard | SMI |
Data transfer rates | 2400 baud |
Topology | line topology |
Cable length | max. 200 m |
Current consumption K-bus | typ. 55 mA |
Electrical isolation | 500 V (K-bus/SMI-bus) |
Bit width in the process image | input/output: 24 bytes |
Configuration | via the Bus Coupler or the controller |
Input voltage | 24 V DC (-15 %/+20 %) |
Insulation voltage | SMI bus/K-bus: 1,500 V DC,SMI bus/power contacts: 1,500 V AC |
SMI system | LoVo |
Special features | 2 digital inputs for simplified commissioning; TwinCAT library: TwinCAT PLC SMI |
Weight | approx. 80 g |
Operating/storage temperature | 0…+55 °C/-25…+85 °C |
Relative humidity | 95 %, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protect. class/installation pos. | IP 20/variable |
Approvals | CE |
Accessories | |
---|---|
TwinCAT PLC SMI | The library is installed free of charge together with TwinCAT from V2.11 Build 2240 (R3 and x64 engineering). |
Related products | |
---|---|
KL6841 | SMI master terminals for 230 V AC |
System | |
---|---|
subsystem | For further subsystem products please see the system overview. |
