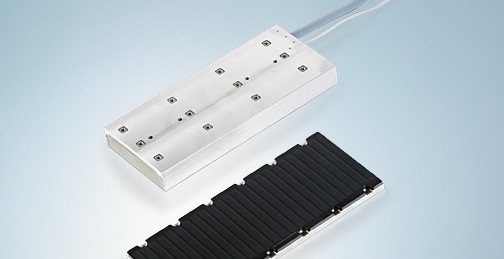

AL28xx | Linear Servomotors
Описание
Информация для заказа
| Dimensions | b | la | h |
|---|---|---|---|
| AL2812 | 130 mm | 244 mm | 45 mm |
| AL2815 | 130 mm | 290 mm | 45 mm |
| AL2818 | 130 mm | 344 mm | 47 mm |
| AL2830 | 130 mm | 562 mm | 45 mm |
| AL2845 | 130 mm | 852 mm | 47 mm |
| Technical data | AL2812 | AL2815 | AL2818 |
|---|---|---|---|
| Winding type | N | S | ||
| Max. speed | 3 m/s (N),6 m/s (S) | 2.5 m/s (N),6 m/s (S) | 3 m/s (N),6 m/s (S) |
| Motor configuration | 3-phase synchronous Linear Servomotors (400…480 V AC) | ||
| Peak force (FP) | 1800 N | 2250 N | 2700 N |
| Peak current (IPa) | 13 A (N),26 A (S) | 13.5 A (N),33 A (S) | 19.6 A (N),41 A (S) |
| Continuous force with water cooling (Fcw) | – | – | 1200 N |
| Continuous force with air cooling (Fca) | 760 N | 950 N | 1140 N |
| Continuous current with water cooling (Icw) | – | – | 6.5 A (N),13.4 A (S) |
| Continuous current with air cooling (Ica) | 4.1 A (N),8.2 A (S) | 4.2 A (N),10.2 A (S) | 6.1 A (N),12.7 A (S) |
| Force constant (Kf) | 186 N/A (N),93 N/A (S) | 225 N/A (N),93 N/A (S) | 186 N/A (N),90 N/A (S) |
| Motor constant (Km) | 1750 N²/W | 2150 N²/W | 2580 N²/W |
| Magnet pitch | 24 mm | ||
| Magnetic attraction force (Fa) | 3400 N | 4150 N | 4900 N |
| Weight of the coil (Mp) | 4.9 kg | 5.9 kg | 7.3 kg |
| Air gap | 0.5 mm | ||
| Temperature sensor | PTC 1 kΩ and KTY83-122 | ||
| Corresponding Servo Drive | AX5x06 (N),AX5112 (S) | AX5x06 (N),AX5118 (S) | AX5112 (N),AX5118 (S) |
| Technical data | AL2830 | AL2845 |
|---|---|---|
| Winding type | N | S | |
| Max. speed | 2.5 m/s (N),6 m/s (S) | |
| Motor configuration | 3-phase synchronous Linear Servomotors (400…480 V AC) | |
| Peak force (FP) | 4500 N | 6750 N |
| Peak current (IPa) | 27 A (N),66 A (S) | 41 A (N),98 A (S) |
| Continuous force with water cooling (Fcw) | 2000 N | 3000 N |
| Continuous force with air cooling (Fca) | 1900 N | 2850 N |
| Continuous current with water cooling (Icw) | 8.9 A (N),21.5 A (S) | 13.4 A (N),32.3 A (S) |
| Continuous current with air cooling (Ica) | 8.5 A (N),20 A (S) | 12.5 A (N),31 A (S) |
| Force constant (Kf) | 225 N/A (N),93 N/A (S) | |
| Motor constant (Km) | 4300 N²/W | 6450 N²/W |
- Цена: Цену уточняйте
