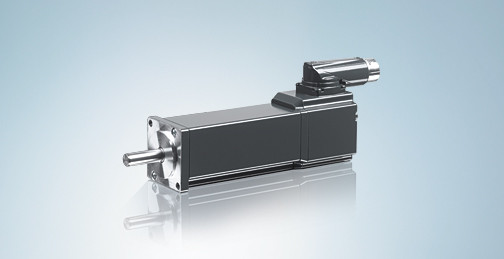

AM8013 | Servomotor 0.55 Nm (M0), F1 (40 mm)
Описание
Информация для заказа
| Data for 230 V AC | AM8013-wDyz |
|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Standstill torque | 0.52 Nm |
| Rated torque | 0.45 Nm |
| Cooling | convection |
| Rated speed | 8000 min-1 |
| Rated power | 0.38 kW |
| Peak torque | 2.04 Nm |
| Standstill current | 1.65 A |
| Peak current | 5.9 A |
| Torque constant | 0.315 Nm/A |
| Voltage constant | 22.7 mV/min-1 |
| Number of poles | 6 |
| Rotor moment of inertia | 0.072 kgcm² |
| Weight | 0.82 kg |
| Holding torque brake (Mbr) | 0.6 Nm |
| Power consumption (brake) at 24 V DC (Pbr) | 10 W |
| Rotor moment of inertia incl. brake (J) | 0.090 kgcm² |
| Weight incl. brake (m) | 1.02 kg |
| Connection technology | itec® plug |
| One Cable Technology (OCT) | yes |
| Approvals/markings | CE, UL |
| Order referenceAM80uv-wxyz | |
|---|---|
| u | flange code F |
| v | motor length |
| w = 0 | smooth shaft |
| w = 1 | shaft with groove and feather key according to DIN 6885 |
| x | winding code |
| y = 0 | 2-cable standard: feedback resolver |
| y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, 18 bit resolution |
| y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
| y = G | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = H | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = N | without feedback (sensorless) |
| z = 0 | without holding brake |
| z = 1 | with holding brake |
| All electric quantities are RMS values. | |
| The options cannot be installed in the field. |
