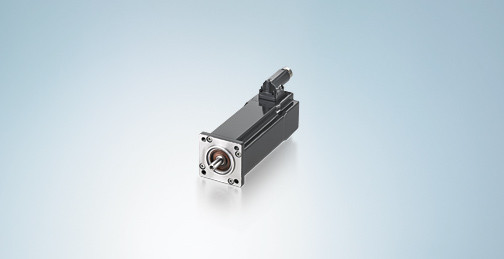

AM8023 | Servomotor 1.2 Nm (M0), F2 (58 mm)
Описание
Информация для заказа
| Data for 400 V AC | AM8023-wEyz | AM8023-wFyz |
|---|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor | |
| Standstill torque | 1.20 Nm | |
| Rated torque | 1.00 Nm | 0.90 Nm |
| Cooling | convection | |
| Rated speed | 8000 min-1 | 9000 min-1 |
| Rated power | 0.84 kW | 0.85 kW |
| Peak torque | 6.36 Nm | 6.37 Nm |
| Standstill current | 2.20 A | 3.40 A |
| Peak current | 11.40 A | 17.70 A |
| Torque constant | 0.54 Nm/A | 0.35 Nm/A |
| Voltage constant | 43 mV/min-1 | 28 mV/min-1 |
| Number of poles | 6 | |
| Rotor moment of inertia | 0.378 kgcm² | 0.373 kgcm² |
| Weight | 1.7 kg | |
| Holding torque brake (Mbr) | 2.0 Nm | |
| Power consumption (brake) at 24 V DC (Pbr) | 10 W | |
| Rotor moment of inertia incl. brake (J) | 0.396 kgcm² | |
| Weight incl. brake (m) | 1.9 kg | |
| Connection technology | itec® plug | |
| One Cable Technology (OCT) | yes | |
| Approvals/markings | CE, UL | |
| Order referenceAM80uv-wxyz | |
|---|---|
| u | flange code F |
| v | motor length |
| w = 0 | smooth shaft |
| w = 1 | shaft with groove and feather key according to DIN 6885 |
| w = 2 | smooth shaft with IP 65 sealing ring (FPM) |
| w = 3 | shaft with IP 65 sealing ring (FPM) and shaft with groove and feather key |
| x | winding code A…Z |
| y = 0 | 2-cable standard: feedback resolver |
| y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, 18 bit resolution |
| y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
| y = G | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = H | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = N | without feedback (sensorless) |
| z = 0 | without holding brake |
| z = 1 | with permanent magnet-excited holding brake |
| All electric quantities are RMS values. | |
| The options cannot be installed in the field. |
