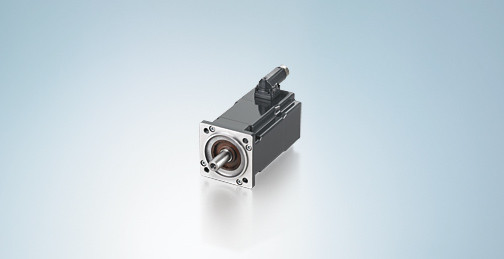

AM8032 | Servomotor 2.38 Nm (M0), F3 (72 mm)
Описание
Информация для заказа
Data for 400 V AC | AM8032-wDyz | AM8032-wEyz | AM8032-wHyz |
---|---|---|---|
Motor type | permanent magnet-excited three-phase synchronous motor | ||
Standstill torque | 2.38 Nm | 2.37 Nm | 2.37 Nm |
Rated torque | 2.30 Nm | 2.20 Nm | 1.85 Nm |
Cooling | convection | ||
Rated speed | 3000 min-1 | 6000 min-1 | 9000 min-1 |
Rated power | 0.72 kW | 1.38 kW | 1.74 kW |
Peak torque | 11.66 Nm | 11.66 Nm | 11.65 Nm |
Standstill current | 1.70 A | 2.95 A | 5.10 A |
Peak current | 9.6 A | 17.2 A | 29.5 A |
Torque constant | 1.39 Nm/A | 0.80 Nm/A | 0.46 Nm/A |
Voltage constant | 100 mV/min-1 | 56 mV/min-1 | 32 mV/min-1 |
Number of poles | 8 | ||
Rotor moment of inertia | 0.847 kgcm² | ||
Weight | 2.4 kg | ||
Holding torque brake (Mbr) | 2.0 Nm | ||
Power consumption (brake) at 24 V DC (Pbr) | 11 W | ||
Rotor moment of inertia incl. brake (J) | 0.921 kgcm² | ||
Weight incl. brake (m) | 2.8 kg | ||
Connection technology | itec® plug | ||
One Cable Technology (OCT) | yes | ||
Approvals/markings | CE, UL |
Order referenceAM80uv-wxyz | |
---|---|
u | flange code F |
v | motor length |
w = 0 | smooth shaft |
w = 1 | shaft with groove and feather key according to DIN 6885 |
w = 2 | smooth shaft with IP 65 sealing ring (FPM) |
w = 3 | shaft with IP 65 sealing ring (FPM) and shaft with groove and feather key |
x | winding code A…Z |
y = 0 | 2-cable standard: feedback resolver |
y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, 18 bit resolution |
y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
y = A | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolutionИли отправьте нам запрос на AM807x and AM853x to AM856x) |
y = B | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolutionИли отправьте нам запрос на AM807x and AM853x to AM856x) |
y = G | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
y = H | One Cable Technology for power and feedback: feedback transmission via mot |
- Цена: Цену уточняйте
