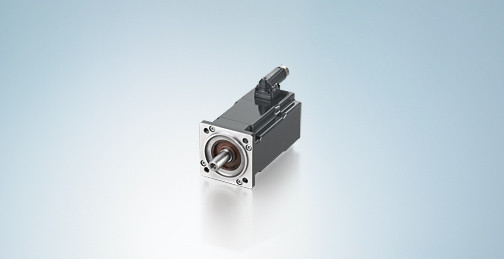

AM8033 | Servomotor 3.22 Nm (M0), F3 (72 mm)
Описание
Информация для заказа
Data for 400 V AC | AM8033-wEyz | AM8033-wFyz | AM8033-wJyz |
---|---|---|---|
Motor type | permanent magnet-excited three-phase synchronous motor | ||
Standstill torque | 3.20 Nm | 3.22 Nm | 3.22 Nm |
Rated torque | 2.98 Nm | 2.70 Nm | 2.30 Nm |
Cooling | convection | ||
Rated speed | 3000 min-1 | 6000 min-1 | 9000 min-1 |
Rated power | 0.94 kW | 1.70 kW | 2.17 kW |
Peak torque | 17.19 Nm | 17.71 Nm | 17.22 Nm |
Standstill current | 2.10 A | 4.10 A | 6.80 A |
Peak current | 12.9 A | 24.6 A | 39.8 A |
Torque constant | 1.50 Nm/A | 0.78 Nm/A | 0.47 Nm/A |
Voltage constant | 106 mV/min-1 | 57 mV/min-1 | 34 mV/min-1 |
Number of poles | 8 | ||
Rotor moment of inertia | 1.23 kgcm² | ||
Weight | 3.0 kg | ||
Holding torque brake (Mbr) | 3.5 Nm | ||
Power consumption (brake) at 24 V DC (Pbr) | 12 W | ||
Rotor moment of inertia incl. brake (J) | 1.46 kgcm² | ||
Weight incl. brake (m) | 3.6 kg | ||
Connection technology | itec® plug | ||
One Cable Technology (OCT) | yes | ||
Approvals/markings | CE, UL |
Order referenceAM80uv-wxyz | |
---|---|
u | flange code F |
v | motor length |
w = 0 | smooth shaft |
w = 1 | shaft with groove and feather key according to DIN 6885 |
w = 2 | smooth shaft with IP 65 sealing ring (FPM) |
w = 3 | shaft with IP 65 sealing ring (FPM) and shaft with groove and feather key |
x | winding code A…Z |
y = 0 | 2-cable standard: feedback resolver |
y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, 18 bit resolution |
y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
y = A | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolutionИли отправьте нам запрос на AM807x and AM853x to AM856x) |
y = B | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolutionИли отправьте нам запрос на AM807x and AM853x to AM856x) |
y = G | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
y = H | One Cable Technology for power and feedback: feedback transmission via moto |
- Цена: Цену уточняйте
