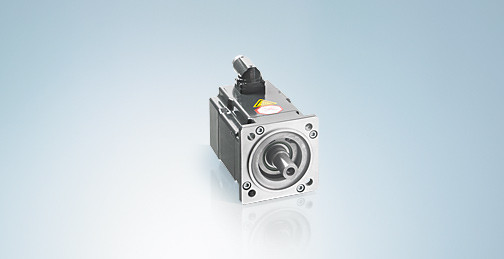

AM8531 | Servomotor with increased moment of inertia 1.4 Nm (M0), F3 (72 mm)
Описание
Информация для заказа
| Data for 400 V AC | AM8531-wCyz | AM8531-wDyz | AM8531-wFyz |
|---|---|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor | ||
| Standstill torque | 1.37 Nm | 1.38 Nm | 1.40 Nm |
| Rated torque | 1.34 Nm | 1.33 Nm | 1.30 Nm |
| Cooling | convection | ||
| Rated speed | 3000 min-1 | 6000 min-1 | 9000 min-1 |
| Rated power | 0.42 kW | 0.84 kW | 1.23 kW |
| Peak torque | 6.1 Nm | 6,07 Nm | 6,07 Nm |
| Standstill current | 1.00 A | 1.95 A | 3.20 A |
| Peak current | 5.50 A | 10.7 A | 17.6 A |
| Torque constant | 1.37 Nm/A | 0.71 Nm/A | 0.44 Nm/A |
| Voltage constant | 99 mV/min-1 | 50 mV/min-1 | 30 mV/min-1 |
| Number of poles | 8 | ||
| Rotor moment of inertia | 1.67 kgcm² | ||
| Weight | 2.4 kg | ||
| Holding torque brake (Mbr) | 2.0 Nm | ||
| Power consumption (brake) at 24 V DC (Pbr) | 11 W | ||
| Rotor moment of inertia incl. brake (J) | 1.76 kgcm² | ||
| Weight incl. brake (m) | 2.7 kg | ||
| Connection technology | itec® plug | ||
| One Cable Technology (OCT) | yes | ||
| Approvals/markings | CE, UL | ||
| Order referenceAM85uv-wxyz | |
|---|---|
| u | flange code F |
| v | motor length |
| w = 0 | smooth shaft |
| w = 1 | shaft with groove and feather key according to DIN 6885 |
| w = 2 | smooth shaft with IP 65 sealing ring |
| w = 3 | shaft with IP 65 sealing ring and shaft with groove and feather key |
| x | winding code A…Z |
| y = 0 | 2-cable standard: feedback resolver |
| y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, 18 bit resolution |
| y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
| y = A | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 23 bit |
| y = B | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolution 23 bit |
| y = G | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = H | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 re |
- Цена: Цену уточняйте
