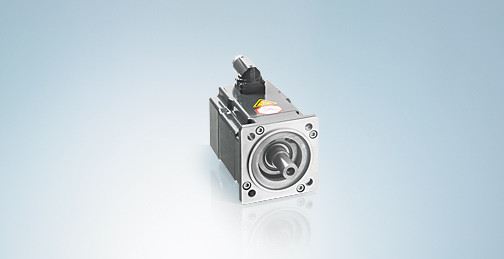

AM8533 | Servomotor with increased moment of inertia 3.22 Nm (M0), F3 (72 mm)
Описание
Информация для заказа
| Data for 400 V AC | AM8533-wEyz | AM8533-wFyz | AM8533-wJyz |
|---|---|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor | ||
| Standstill torque | 3.20 Nm | 3.22 Nm | 3.22 Nm |
| Rated torque | 2.98 Nm | 2.70 Nm | 2.30 Nm |
| Cooling | convection | ||
| Rated speed | 3000 min-1 | 6000 min-1 | 9000 min-1 |
| Rated power | 0.94 kW | 1.70 kW | 2.17 kW |
| Peak torque | 17.19 Nm | 17.71 Nm | 17.22 Nm |
| Standstill current | 2.10 A | 4.10 A | 6.80 A |
| Peak current | 12.9 A | 24.6 A | 39.8 A |
| Torque constant | 1.50 Nm/A | 0.78 Nm/A | 0.47 Nm/A |
| Voltage constant | 106 mV/min-1 | 57 mV/min-1 | 34 mV/min-1 |
| Number of poles | 8 | ||
| Rotor moment of inertia | 2.44 kgcm² | ||
| Weight | 3.6 kg | ||
| Connection technology | itec® plug | ||
| One Cable Technology (OCT) | yes | ||
| Approvals/markings | CE, UL | ||
| Order referenceAM85uv-wxyz | |
|---|---|
| u | flange code F |
| v | motor length |
| w = 0 | smooth shaft |
| w = 1 | shaft with groove and feather key according to DIN 6885 |
| w = 2 | smooth shaft with IP 65 sealing ring |
| w = 3 | shaft with IP 65 sealing ring and shaft with groove and feather key |
| x | winding code A…Z |
| y = 0 | 2-cable standard: feedback resolver |
| y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, 18 bit resolution |
| y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
| y = A | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 23 bit |
| y = B | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolution 23 bit |
| y = G | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = H | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = N | without feedback (sensorless) |
| z = 0 | without holding brake |
| All electric quantities are RMS values. | |
