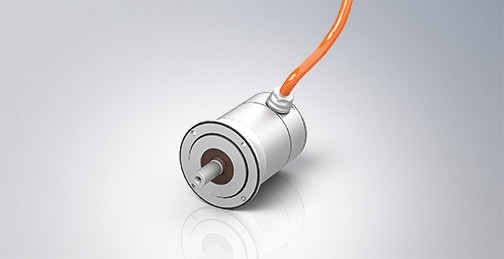

AM8742 | Servomotor with anodised housing 4.10 Nm (M0)
Описание
Информация для заказа
| Data for 400 V AC | AM8742-wFyz |
|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor |
| Standstill torque | 4.10 Nm |
| Rated torque | 3.70 Nm |
| Rated speed | 5000 min-1 |
| Rated power | 1.94 kW |
| Standstill current | 4.10 A |
| Rotor moment of inertia | 1.98 kgcm² |
| Connection technology | M23 speedtec® plug or direct connection for AX5000/AX8000 |
| One Cable Technology (OCT) | yes |
| Approvals/markings | CE |
| Order referenceAM87uv-wxyz-caaa | |
|---|---|
| u | flange code |
| v | motor length |
| w = 0 | smooth shaft with sealing ring IP 69K |
| w = 1 | shaft with groove and feather key according to DIN 6885 and sealing ring IP 69K |
| x | winding code A…Z |
| y = 0 | 2-cable standard |
| y = 1 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, 18 bit resolution |
| y = 2 | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, 18 bit resolution |
| y = G | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, single-turn, absolute position within one revolution, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| y = H | One Cable Technology for power and feedback: feedback transmission via motor cable, no feedback cable necessary, electronic identification plate, multi-turn, absolute position within 4096 revolutions, resolution 24 bit, SIL2 (only in combination with AX8xxx-0200) |
| z = 0 | without holding brake |
| z = 1 | with holding brake |
| z = 2 | without holding brake, with sealing air connection |
| z = 3 | with holding brake, with sealing air connection |
| c = 0 | motor connection via M23 speedtec® plug, cable length definable via aaa (1) |
| c = 2 | direct connection for AX5000 up to 25 A (X13+X14), cable length definable via aaa |
| c = 3 | direct connection for AX8000 (X13), cable length definable via aaa |
| aaa | length of the motor cable in decimetres |
| (1) For motor connection via an M23 speedtec® plug, a connecting cable ZK4500-80x3-xxxx must also be ordered in the required length. | |
| All electric quantities are RMS values. | |
| The options cannot be installed in the field. |
| Product announcement | estimated market release 2nd quarter 2019 |
