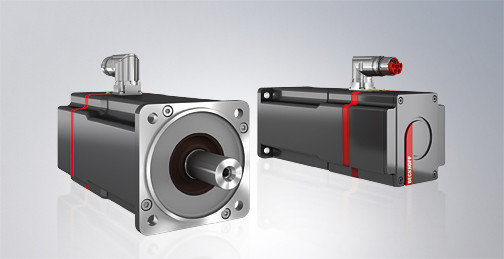

AMP8041 | Distributed servo drive 2.25…2.40 Nm (M0), F4 (87 mm)
Описание
Характеристики
Информация для заказа
| Data for 400 V AC | AMP8041-Dxyz | AMP8041-Exyz |
|---|---|---|
| Motor type | permanent magnet-excited three-phase synchronous motor with integrated servo drive | |
| Standstill torque | 2.25 Nm | 2.40 Nm |
| Rated torque | 2.19 Nm | 2.29 Nm |
| Cooling | convection, permissible ambient temperature 40 °C, optionally: external axial ventilation | |
| Rated speed | 3000 min-1 | 6000 min-1 |
| Rated power | 0.69 kW | 1.44 kW |
| Peak torque | 11.87 Nm | 11.02 Nm |
| Standstill current | 1.60 A | 3.00 A |
| Peak current | 8.30 A | 13.6 A |
| Torque constant | 1.22 Nm/A | 0.67 Nm/A |
| Voltage constant | 101 mV/min-1 | 56 mV/min-1 |
| Number of poles | 8 | |
| Rotor moment of inertia | 1.09 kgcm² | |
| Weight | 4.45 kg | |
| Holding torque brake (Mbr) | 9 Nm | |
| Power consumption (brake) at 24 V DC (Pbr) | 18 W | |
| Rotor moment of inertia incl. brake (J) | 1.73 kgcm² | |
| Weight incl. brake (m) | 5.25 kg | |
| Connection technology | ECP B23 plug | |
| One Cable Technology (OCT) | yes | |
| Approvals/markings | CE, UL in preparation | |
| Order referenceAMP80uv-wxyz | |
|---|---|
| u | flange code F |
| v | motor length |
| w | winding code A…Z |
| x = 0 | smooth shaft |
| x = 1 | shaft with groove and feather key according to DIN 6885 |
| x = 2 | shaft with IP 65 sealing ring and smooth shaft |
| x = 3 | shaft with IP 65 sealing ring and shaft with groove and feather key |
| x = 4 | shaft with IP 65 sealing ring, smooth shaft and sealing air connection |
| x = 5 | shaft with IP 65 sealing ring, shaft with groove and feather key and sealing air connection |
| y = 1 | absolute encoder single-turn, absolute position within one revolution, 24 bit resolution, STO, SS1 |
| y = 2 | multi-turn absolute encoder, absolute position within 4096 revolutions, 24 bit resolution, STO, SS1 |
| y = 3 | absolute encoder single-turn, absolute position within one revolution, 24 bit resolution, extended safety functions |
| y = 4 | multi-turn absolute encoder, absolute position within 4096 revolutions, 24 bit resolution, extended safety functions |
| z = 0 | without holding brake |
| z = 1 | with holding brake |
| All electric quantities are RMS values. | |
| The options cannot be installed in the field. |
| Product announcement | estimated market release 4th quarter 2019 |
