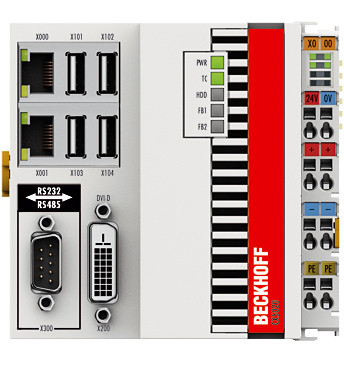

CX5010 | Embedded PC with Intel® Atom™ processor
Описание
Информация для заказа
Technical data | CX5010 |
---|---|
Processor | Intel® Atom™ Z510, 1.1 GHz clock frequency |
Number of cores | 1 |
Flash memory | slot for Compact Flash card, 128 MB included (expandable) |
Main memory | 512 MB RAM (not expandable) |
Persistent memory | integrated 1-second UPS (1 MB on Compact Flash card) |
Interfaces | 2 x RJ45 10/100/1000 Mbit/s, 1 x DVI-D, 4 x USB 2.0, 1 x optional interface |
Diagnostics LED | 1 x power, 1 x TC status, 1 x flash access, 2 x bus status |
Clock | internal battery-backed clock for time and date (battery exchangeable) |
Operating system | Microsoft Windows Embedded CE 6 or Microsoft Windows Embedded Standard 2009 |
Control software | TwinCAT 2 runtimeTwinCAT 3 runtime (XAR) |
I/O connection | E-bus or K-bus, automatic recognition |
Power supply | 24 V DC (-15 %/+20 %) |
Current supply E-bus/K-bus | 2 A |
Max. power loss | 12 W (including the system interfaces) |
Dimensions (W x H x D) | 100 mm x 106 mm x 92 mm |
Weight | approx. 575 g |
Operating/storage temperature | -25…+60 °C/-40…+85 °C |
Relative humidity | 95 %, no condensation |
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
Protection class | IP 20 |
Approvals/Markings | CE, UL, ATEX |
Ex-Marking | II 3 G Ex nA IIC T4 Gc |
TC3 performance class | Performance (40); please see here for an overview of all the TwinCAT 3 performance classes |
Ordering information | E-bus | K-bus | no operating system | Windows Embedded CE 6 | Windows Embedded Standard 2009 | no TwinCAT | TwinCAT 2 PLC runtime | TwinCAT 2 NC PTP runtime | TwinCAT 3 runtime (XAR) |
---|---|---|---|---|---|---|---|---|---|
CX5010-0100 | x | – | x | – | – | x | – | – | – |
CX5010-0110 | x | – | – | x | – | x | – | – | – |
CX5010-0111 | x | – | – | x | – | – | x | – | – |
CX5010-0112 | x | – | – | x | – | – | x | x | – |
CX5010-0115 | x | – | – | x | – | – | – | – | x |
CX5010-0120 | x | – | – | – | x* | x | – | – | – |
CX5010-0121 | x | – | – | – | x* | <td colspan="1" rowspan="</tr>
- Цена: Цену уточняйте
