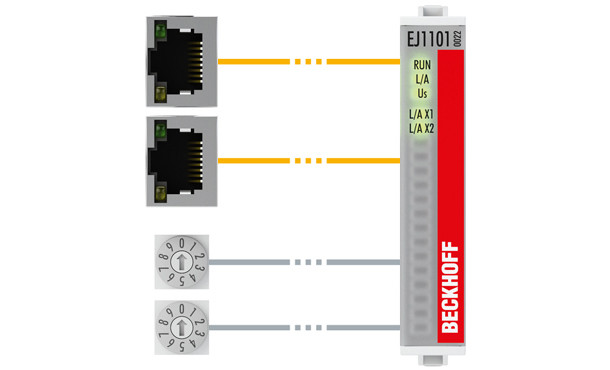

EJ1101-0022 | EtherCAT Coupler with external connectors, power supply module and optional ID switches

Описание
Информация для заказа
| Technical data | EJ1101-0022 |
|---|---|
| Task within EtherCAT system | coupling of EtherCAT plug-in modules (EJxxxx) to 100BASE-TX EtherCAT networks |
| Distance between stations | max. 100 m (100BASE-TX) |
| Data transfer medium | Industrial Ethernet/EtherCAT cable (min. Cat. 5), shielded |
| ID switch | external (optional) |
| Diagnostics | over-/undervoltage via EtherCAT CoE |
| Distributed clocks | yes |
| Protocol | EtherCAT |
| Delay | typ. 1 µs |
| Data transfer rates | 100 Mbaud |
| Bus interface | 2 x RJ45 (external) |
| Power supply | 24 V DC (-15 %/+20 %) |
| Current consumption E-bus | typ. 310 mA |
| Current supply E-bus | – |
| Electrical isolation | 500 V (power contact/supply voltage/Ethernet) |
| Dimensions (W x H x D) | 12 mm x 66 mm x 55 mm |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protection class | IP 20 |
| Approvals/markings | CE, UL |
| System | |
|---|---|
| EtherCAT | For further EtherCAT products please see the system overview |
