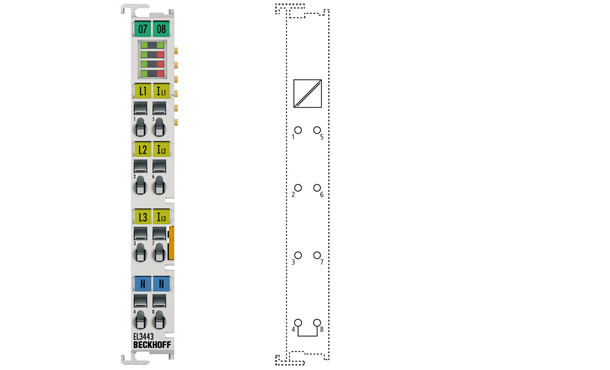

EL3443 | 3-phase power measurement terminal with extended functionality
Описание
Информация для заказа
| Technical data | EL3443 |
|---|---|
| Number of inputs | 3 x current, 3 x voltage |
| Technology | 3-phase power measurement |
| Oversampling factor | – |
| Distributed clocks | optional |
| Update interval | one mains period (20 ms at 50 Hz) |
| Update time | net-synchronous |
| Measured values | current; voltage; effective, reactive and apparent power; active, reactive and apperent energy; cos φ; frequency; THD; harmonic (up to 40th harmonic) |
| Measuring voltage | max. 480 V AC 3~ (ULX-N: max. 288 V AC/DC) |
| Measuring current | max. 1 A (AC/DC), via measuring transformers x A/1 A |
| Measuring error | 0.3 % relative to full scale value (U/I), 0.6 % calculated values (see documentation) |
| Monitoring function | phase order, phase failure, phase asymmetry, undervoltage/overvoltage (adjustable) |
| Electrical isolation | 2500 V |
| Current consumption power contacts | – |
| Current consumption E-bus | typ. 120 mA |
| Special features | mains monitoring, precise detection of zero voltage crossing, single-phase operation possible |
| Weight | approx. 75 g |
| Operating/storage temperature | -25…+60 °C/-40…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| Ordering information | |
|---|---|
| EL3443 | 3-phase power measurement terminal with extended functionality, max. 480 V AC 3~/DC, max. 1 A, via measuring transformers x A/1 A |
| EL3443-0010 | 3-phase power measurement terminal with extended functionality, max. 480 V AC 3~/DC, max. 5 A, via measuring transformers x A/5 A |
| EL3443-0011 | 3-phase power measurement terminal with extended functionality, max. 480 V AC 3~/DC, 100 mA, via measuring transformers x A/100 mA |
| EL3443-0013 | 3-phase power measurement terminal with extended functionality, max. 480 V AC 3~/DC, 333 mV, via measuring transformers x A/333 mV |
| Related products | |
|---|---|
| EL3423 | 3-phase energy measurement terminal Economy |
| EL3483 | 3-phase grid status terminal for voltage, frequency and phases |
| Product announcement | EL3443, EL3443-0010: availableEL3443-0011, EL3443-0013: estimated market release 1st quarter 2019 |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
