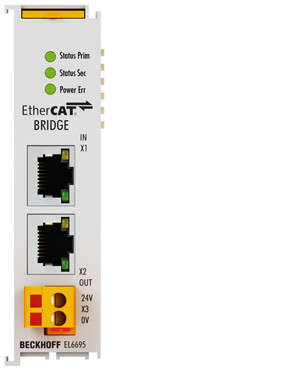

EL6695 | EtherCAT bridge terminal

Описание
Информация для заказа
| Technical data | EL6695 |
|---|---|
| Technology | primary side: E-bus (terminal strand), secondИли отправьте нам запрос наhernet, RJ45, In/Out |
| Ports | primary: E-bus, secondary: 2 x RJ45 EtherCAT input/output |
| Function | EtherCAT distributed clock synchronisation, data exchange |
| Cable length | 100 m 100BASE-TX, secondary port |
| Hardware diagnosis | status LEDs |
| Power supply | primary: via the E-bus, secondary: via connector, 24 V |
| Distributed clocks | yes |
| Electrical isolation | 500 V (E-bus/secondary side) |
| Current consumption | primary: E-bus 400 mA; secondary: 70 mA/24 V |
| Bit width in the process image | max. 3 kbyte per direction (dependent on the EtherCAT master, TwinCAT currently max. 1400 byte) |
| Special features | usable in TwinCAT as a reference clock, synchronous data exchange, flexible PDO mapping, supports AoE, EoE, FoE, VoE |
| Weight | approx. 75 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/variable |
| Approvals | CE, UL |
| Related products | |
|---|---|
| EL6692 | EtherCAT bridge terminal |
