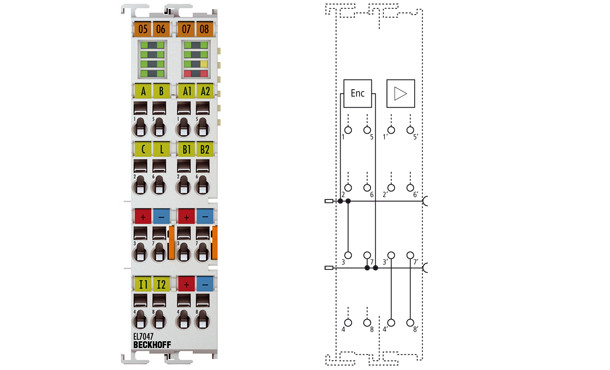

EL7047 | Stepper motor terminal 50 V DC, 5 A, with incremental encoder, vector control
Описание
Информация для заказа
| Technical data | EL7047 |
|---|---|
| Technology | direct motor connection |
| Number of outputs | 1 stepper motor, 2 phases, 1 brake configurable (0.5 A) |
| Number of inputs | 2 limit position, 4 for an encoder system |
| Load type | uni- or bipolar stepper motors |
| Nominal voltage | 8…50 V DC |
| Power supply | via the E-bus |
| Max. output current | 5 A (overload- and short-circuit-proof) |
| Performance increase | Yes, through ZB8610 fan cartridge |
| output current with ZB8610 | max. 6.5 A (overload- and short-circuit-proof) |
| Max. step frequency | 1000, 2000, 4000, 8000 or 16,000 full steps/s (configurable) |
| Step pattern | 64-fold micro stepping |
| Current controller frequency | approx. 30 kHz |
| Diagnostics LED | error phase A and B, loss of step/stagnation, power, enable |
| Resolution | approx. 5000 positions in typ. applications (per revolution) |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Current consumption power contacts | typ. 50 mA |
| Current consumption E-bus | typ. 100 mA |
| Distributed clocks | yes |
| Encoder input signal | 5…24 V DC, 5 mA, single-ended |
| Pulse frequency | max. 400,000 increments/s (with 4-fold evaluation) |
| Special features | travel distance control, encoder input, vector control |
| Weight | approx. 90 g |
| Operating/storage temperature | 0…+55 °C/-25…+85 °C |
| Relative humidity | 95 %, no condensation |
| Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 |
| EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 |
| Protect. class/installation pos. | IP 20/see documentation |
| Approvals | CE, UL |
| Accessories | |
|---|---|
| EL9576 | brake chopper terminal, 72 V, 155 µF |
| ZB8610 | fan cartridge for EtherCAT and Bus Terminals |
| AS2022-wHy0 | stepper motor, 50 V DC, 1.5 Nm standstill torque, 5.6 A standstill current |
| AS2023-wJy0 | stepper motor, 50 V DC, 2.3 Nm standstill torque, 6.4 A standstill current |
| AS2042-wHy0 | stepper motor, 50 V DC, 6.4 Nm standstill torque, 5.6 A standstill current |
| Cables, gears and couplings | accessories for AS2000 stepper motors |
| Related products | |
|---|---|
| EL7041 | stepper motor EtherCAT Terminal, IMAX = 5 A, 50 V, IP 20 |
| EL7037 | stepper motor EtherCAT Terminal, IMAX = 1.5 A, 24 V, IP 20, vector control |
| EL7031 | stepper motor EtherCAT Terminal, IMAX = 1.5 A, 24 V, IP 20 |
| EP7041-0002 | stepper motor EtherCAT Box (industrial housing), IMAX = 5 A, 50 V, IP 67 |
| KL2531 | stepper motor Bus Terminal, IMAX = 1.5 A, 24 V, IP 20 |
| KL2541 | stepper motor Bus Terminal, IMAX = 5 A, 50 V, IP 20 |
- Цена: Цену уточняйте
