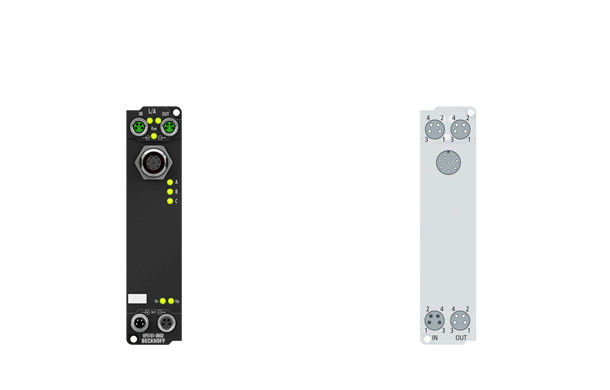

EP5101 | Incremental encoder interface with differential inputs
Описание
Информация для заказа
Technical data | EP5101-0002 | EP5101-0011 | EP5101-2011 | EP5101-1002 |
---|---|---|---|---|
Connection technology | M12, 8-pin | D-sub socket, 15-pin | D-sub socket, 15-pin | M12, 8-pin |
Number of channels | 1 | |||
Connection encoder/sensor | M12, screw type, 8-pin | D-sub socket, 15-pin | D-sub socket, 15-pin | M12, screw type, 8-pin |
Encoder connection | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422) | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422); status input 5 V DC; gate/latch input 24 V DC | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422); status input 5 V DC; gate/latch input 24 V DC | A, A (inv), B, B (inv), C,C (inv), differential inputs (RS422) |
Nominal voltage | 24 V DC (-15 %/+20 %) | |||
Signal type | differential | |||
Sensor supply | +5 V DC, 150 mA (VCC) | +5 V DC, 150 mA (VCC) | +5 V DC, 150 mA (VCC) | 24 V DC, 500 mA (VCC) |
Counter | 1 x 16/32 bit switchable | |||
Limit frequency | 4 million increments/s (with 4-fold evaluation) | 4 million increments/s (with 4-fold evaluation) | 20 million increments/s (with 4-fold evaluation) | 4 million increments/s (with 4-fold evaluation) |
Quadrature decoder | 4-fold evaluation | |||
Zero-pulse latch | 1 x 16/32 bit switchable | |||
Commands | read, set, enable | |||
Distributed clocks | yes | |||
Power supply connection | feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin | |||
Current consumption from US | typ. 130 mA + sensor supply | |||
Bit width in the process image | 1 x 32 bit input, 1 x 16 bit output, 8 bit control, 8 bit status | |||
Electrical isolation | 500 V | |||
Weight | approx. 165 g | |||
Operating/storage temperature | 0…+55 °C/-25…+85 °C | |||
Vibration/shock resistance | conforms to EN 60068-2-6/EN 60068-2-27 | |||
EMC immunity/emission | conforms to EN 61000-6-2/EN 61000-6-4 | |||
Protect. class/installation pos. | IP 65/66/67 (conforms to EN 60529)/variable | |||
Approvals | CE, UL, Ex | CE, UL | CE, UL | CE, UL |
Accessories | |
---|---|
ZK1090-3xxx-xxxx | Cables for EtherCAT signal in- and -output |
ZK2000-71xx-0xxx | Shielded cables for M12 I/O connection sockets |
ZK2020-3xxx-xxxx | Cables for M8 power supply |
