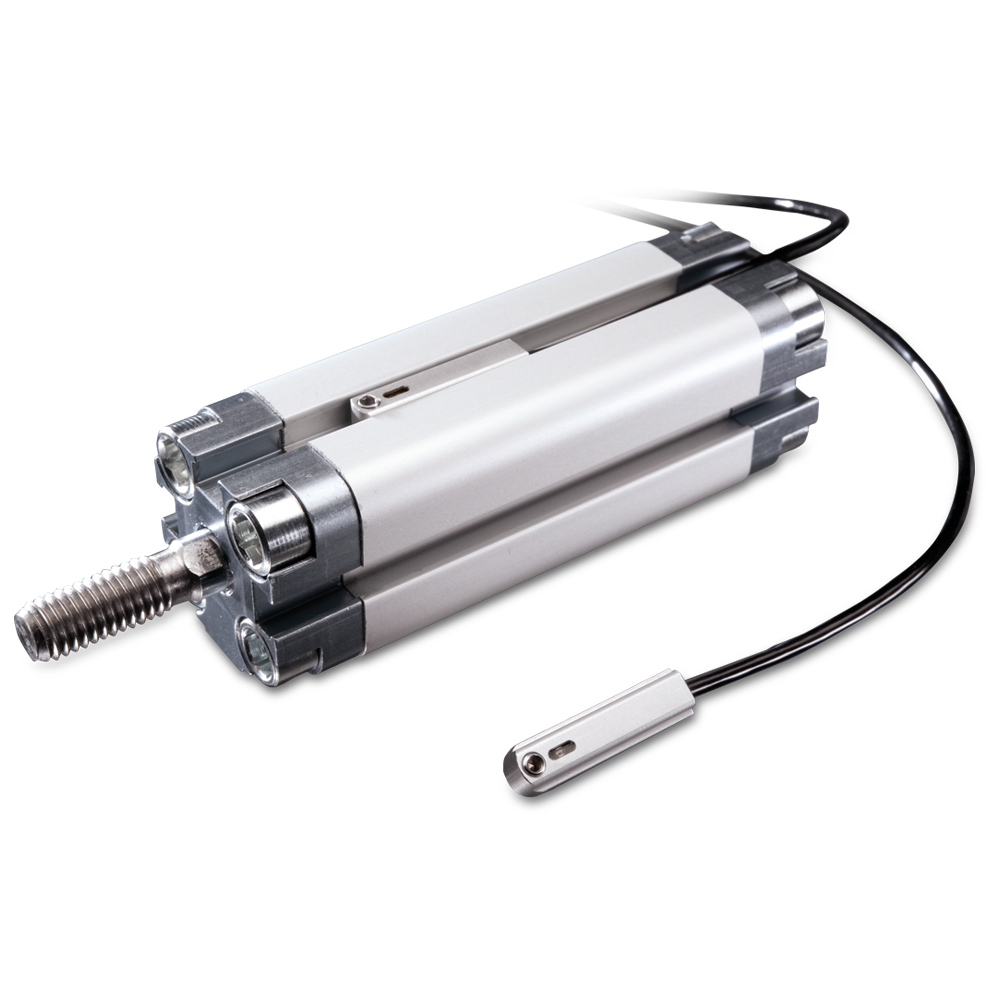

Miniature magnetic position sensors
Описание
Информация для заказа
Product advantages
- One or two freely programmable switching points
- Straightforward teach-in procedure
- Suitable for standard C- and T-slots
- High switching accuracy
- Reduced installation and wiring requirements
- Can be fitted from above
- Completely integrated electronic solution
- No need for additional electronics
- Fully immersed and therefore protected installation
- Available as cable or plug version
Technical data
- PNP/NO contact
- Magnetic sensitivity ±1.5 mT to ±13.5 mT
- Sensing distance up to 50 mm (depending on magnet/air gap)
- Repeat accuracy ? 0.1 mT
- Hysteresis 1 mT ? H ? 1.35 mT
- Operating voltage range UB 10–30 V DC
- Output current Ie ? 50 mA (one output switched)
? 25 mA per output (both outputs switched) - Ambient temperature –20 °C to +80 °C
- Protection class IP 67
Analog cylinder sensor
- Suitable for T-slot
- Analog output with 0–10 V
- Shilded connection cable with M8 plug connector
- Ambient temperature +5 °C to +55 °C
