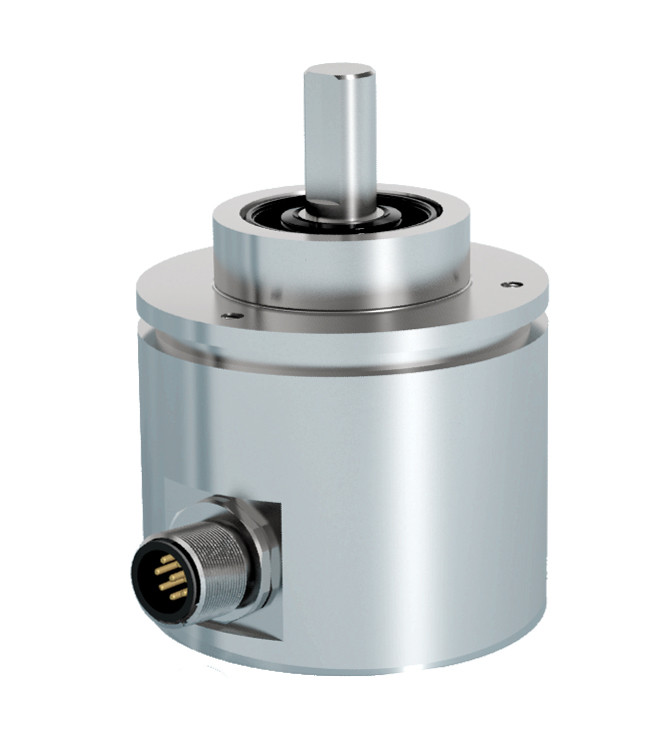

Rotary encoder TRD
Recording of the angular position and revolutions by mens of Hall sensors - multiturn version with absolute transmission for up to 4096 revolutions - data output plus parameterisation and diagnosis via Profibus-DP. Robust housing manufactured from seawater-proof aluminium or stainless steel - stainless steel shaft - ball bearing with radial shaft seal - sensor circuit consisting of ASIC with Hall elements - electrical connections via the connecting cap with threaded cable connections. The absolute encoders are designed for direct connection to the PROFIBUS-DP. The interface is implemented with the SPC3 Siemens PROFIBUS controller. The protocol corresponds to DP-Slave Class 2 functionality in accordance with Profibus profile Или отправьте нам запрос наd is described in detail in the TRD 12770 user manual. The TRD is mechanicallly and electrically compatible with the electro-optical encoder CRD.
| Product category: | Rotary encoders |
| Inkremental or absolute: | Absolute |
| Interface: | PROFIBUS |
| Single- or Multiturn: | Multiturn |
| Design: | 58mm, 64mm, 65mm, 66mm, 90mm, 105mm, 125mm |
| Housing material: | Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 |
| Flange and shaft: | Cam switch flange, shaft for ZRS, Clamped flange, shaft 10mm with disk spring, Clamped flange, shaft 10mm with feather key, Clamped flange, shaft 10mm with flattened area, Clamped flange, shaft for measurement gear ZRS, Mounting flange, shaft 12mm, Mounting flange, shaft 12mm with feather key, Special version (see data sheet), Synchro flange, shaft 6 mm, Synchroniser flange, clamped shaft, 12mm inside diameter , Synchroniser flange, shaft 6mm with flattened area, Synchroniser flange, shaft 12mm, Synchroniser flange, shaft 12mm with feather key |
| Resolution: | 4096 steps/360°<) or steps/drum circumference (248mm) with draw wire version, 8194 steps/360°<) or steps/drum circumference (248mm) with draw wire version |
| Code type: | Binary |
| Measuring range: | 10 measuring lengths in metres for the draw wire version. Possible values: 6 and 10, 4096 revolutions |
| Profile: | Class 2 according to encoder profile No. 3.062 |
| Connection cover: | Connection cover |
| Electrial and/or mechanical variant: | Compatible with rotary encoder model KRD, Standard |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
