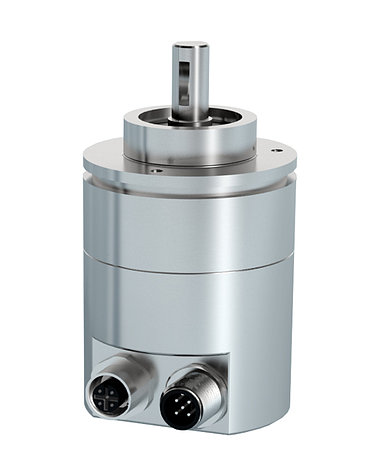

Switching cam encoder NOCE79/S3 SIL2
Описание
Информация для заказа
Product category: | Switching cam encoders |
Interface: | CANopen, Relais, SSI |
Inkremental or absolute: | Absolute |
Design: | 79mm |
Special feature: | SIL2/PLd |
Flange and shaft: | Clamped flange, clamped shaft 12mm inside diameter with groove, Clamped flange, shaft 12mm for measurement gear, Clamped flange, shaft 12mm with feather key, Clamped flange, shaft 12mm with flattened area, Synchroniser flange, clamped shaft, 12mm inside diameter with groove, Synchroniser flange, shaft 12mm for measurement gear , Synchroniser flange, shaft 12mm with feather key, Synchroniser flange, shaft 12mm with flattened area |
Number of switching outputs: | Up to 4 safe switching outputs (SIL2) |
Housing material: | Aluminium, Stainless steel 1.4305, Stainless steel 1.4404 |
Resolution: | 4096 steps/360°. Also possible 8192, 16384 and 32768 steps/360° |
Code type: | Binary, Gray |
Measuring range: | 16 revolutions, 256 revolutions, 4096 revolutions |
Profile: | S3 Safety SIL2 Ausführung |
Electrical connection: | 1 connection, 2 connections, 3 connections, Device connector M12, radial , Via cable 1m, axial (other lengths on requestИли отправьте нам запрос наther lengths on request) , Via device connector M12, axial |
Electrial and/or mechanical variant: | Standard with cam preset version 1, Standard with cam preset version 2 |
