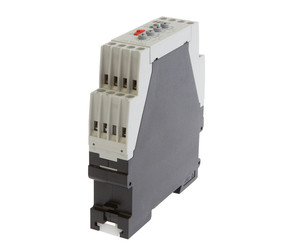

ZI535480
Описание
Информация для заказа
Mechanical features | |
---|---|
Mounting method | DIN rail (top hat rail) 35 mm |
Height | 90mm |
Housing material | Plastic |
Degree of protection (IP) | IP20 |
Width | 22.5mm |
Depth | 97mm |
Ambient temperature | -40 - 60°C |
Max. tightening torque | 0.8Nm |
Electrical features | |
Voltage type | AC/DC |
Max. output current | 3A |
Number of switching outputs | 2 |
Switching voltage | 250V |
Type of switching output | Relay contact |
Rated control supply voltage Us at AC 50HZ | 12 - 240V |
Operating voltage | 12 - 240V |
Relative repeat accuracy | 0.5% |
Number of outputs, undelayed, normally open contact | 0 |
Number of outputs, delayed, normally open contact | 0 |
Voltage type for actuation | AC/DC |
Decay time | 10ms |
Power consumption | 3VA |
Number of pins | 14 |
Time range | 0.05 - 1080000s |
Type of electrical connection | Screw connection |
Type of switching function | Change-over contact |
Rated control supply voltage Us at DC | 12 - 240V |
Setting procedure | Manual adjustment |
Number of outputs, undelayed, normally closed contact | 0 |
Number of outputs, delayed, normally closed contact | 0 |
Number of outputs, delayed, change-over contact | 2 |
Readiness delay | 80ms |
Number of time ranges | 8 |
