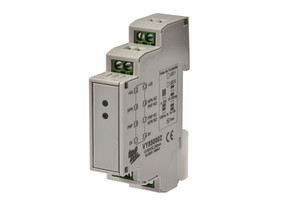

VY850002
Описание
Информация для заказа
Mechanical features | |
---|---|
Mounting method | DIN rail (top hat rail) 35 mm |
Height | 85mm |
Housing material | Plastic |
Degree of protection (IP) | IP40 |
Width | 17.5mm |
Length | 65mm |
Ambient temperature | -10 - 60°C |
Electrical features | |
Voltage type | DC |
Number of pins | 8 |
Time range | 0.01 - 10s |
Type of electrical connection | Clamp |
Rated control supply voltage Us at DC | 12 - 30V |
Setting procedure | Manual adjustment |
Number of outputs, undelayed, normally open contact | 1 |
Number of outputs, delayed, normally closed contact | 1 |
Number of outputs, delayed, change-over contact | 0 |
Reverse polarity protection | yes |
Number of time ranges | 3 |
Max. output current | 0.3A |
Number of switching outputs | 1 |
Switching voltage | 30V |
Type of switching function | Normally closed contact/normally open contact |
Operating voltage | 12 - 30V |
Number of outputs, undelayed, normally closed contact | 1 |
Number of outputs, undelayed, change-over contact | 0 |
Number of outputs, delayed, normally open contact | 1 |
Short-circuit-proof | yes |
Type of signal input A | PNP/NPN |
Type of signal output | PNP/NPN |
