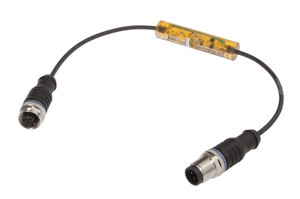

VY030124
Описание
Информация для заказа
Mechanical features | |
---|---|
Mounting method | Direct mounting |
Housing material | Plastic |
Degree of protection (IP) | IP67 |
Positioning of cable feed, field side | Straight |
Cable length | 0.3m |
Ambient temperature | -25 - 70°C |
Positioning of cable feed, housing side | Straight |
Electrical features | |
Voltage type | DC |
Number of pins | 3 |
Time range | 0 - 0.15s |
Type of electrical connection | Plug-in connection |
Rated control supply voltage Us at DC | 10 - 35V |
Setting procedure | Manual adjustment |
Type of electrical connection, housing side | M12 |
Type of plug-in contact, field side | Female (socket) |
Number of outputs, undelayed, normally open contact | 0 |
Number of outputs, delayed, normally closed contact | 0 |
Number of outputs, delayed, change-over contact | 0 |
Type of plug-in contact, housing side | Male (plug) |
Type of signal input A | PNP |
Type of signal output | PNP |
Number of pins of the connector | 4 |
Max. output current | 0.15A |
Number of switching outputs | 1 |
Switching voltage | 35V |
Type of switching function | Normally open contact |
Operating voltage | 10 - 35V |
No-load current | 20mA |
Type of electrical connection, field side | M12 |
Number of outputs, undelayed, normally closed contact | 0 |
Number of outputs, undelayed, change-over contact | 0 |
Number of outputs, delayed, normally open contact | 1 |
Short-circuit-proof | yes |
Pulse stretching | 1 - 150ms |
Number of time ranges | 1 |
Number of pins of the coupling | 4 |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
