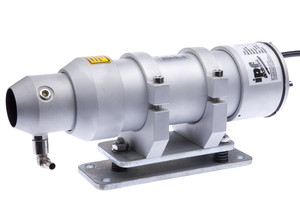

PT98C085
Описание
Информация для заказа
Mechanical features | |
---|---|
Housing material | Aluminium |
Number of wires | 16 |
Housing design | Cuboid |
Degree of protection (IP) | IP66 |
Sensor height | 110mm |
Housing coating | Anodised |
Ambient temperature | -10 - 60°C |
Material of optical surface | Glass |
Sensor width | 90mm |
Sensor length | 255mm |
Electrical features | |
Voltage type | DC |
Number of switching outputs | 1 |
Scanning principle | Push button |
Type of electrical connection | Cable |
Type of switching function | Programmable/configurable |
Standard for interfaces | RS-232 / RS-485 |
Measuring method for optical distance measurement | Phase comparison measurement |
Short-circuit-proof | yes |
Measuring range length | 200 - 30000mm |
Max. output current | 500mA |
Switching frequency | 15.1Hz |
Type of analog output | 4 mA ... 20 mA |
Type of switching output | PNP |
Setting procedure | Parameterization |
No-load current | 100mA |
Supply voltage | 10 - 30V |
Scanning function | Light switching |
Reverse polarity protection | yes |
Optical features | |
Laser protection class | Class 2 |
Relative measurement accuracy | 4% |
Resolution | 1000µm |
Laser focus distance | 100mm |
Light spot range | 0.01 - 346.39mm² |
Light source | Laser diode, red light |
Wavelength of the sensor | 650nm |
Light beam form | Point |
Light spot, laser focus | 0.06mm² |
По вопросу интересующей Вас продукции, пожалуйста, свяжитесь с нами:
8 (029) 555-8-000 | |
8 (044) 555-8-000 | |
8 (017) 255-8-000 |
Или отправьте нам запрос на e-mail: zapros@filfar.by
- Цена: Цену уточняйте
